Description

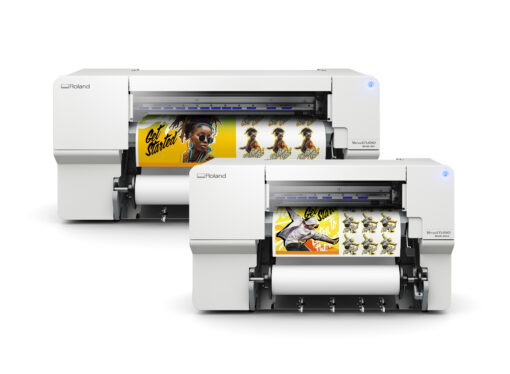

VersaStudio BN2 Desktop Printers/Cutters
Versatile and Easy-to-Use
- Print and contour-cut graphics for a range of applications with one compact, affordable device.
- Simple to operate, even for those with little or no printing experience.
- Easy-to-use design and output software included, so anyone can design and print right out of the box.
High Print Quality
- Consistently produce stunning high-resolution prints with vibrant color and excellent detail.
- Specially formulated Eco-Sol MAX2 and Eco-Sol MAX3 inks in 4-color (BN2-20A) or 5-color (BN2-20) configurations.
- Prints deliver excellent outdoor durability for long-lasting graphics.
Productive and Efficient
- Print speeds four times faster than the original BN-20 (in Standard mode) for increased productivity.
- Front-loading ink and media, automatic sheet-cut and other features optimize convenience and efficiency.
- Compact size fits easily on most desktops making it ideal for home businesses and small work spaces.
Additional Features
+ Included VersaWorks 6 professional output software for users looking for even greater control over BN2 print settings and capabilities.
+ Media set functions allow for easy and accurate job setup, while new sheet cut function trims media at the touch of a button.
+ Automatic sensor adjustments allow for fine-tuning of printer settings according to the media type, and included media profiles make it easy to achieve optimum results.
+ Access to Roland DG Connect app enables BN2 users to gain a detailed understanding of their print operation and keep their device running optimally.
Specs:
| BN2-20A | BN2-30 | ||||
|---|---|---|---|---|---|
| Printing method | Piezo inkjet method | ||||
| Dimensions | 42.1 x 24.3 x 24.5 in. (1,069 x 617 x 622 mm) | ||||
| Weight | 137 lb. (62 kg) | 164 lb. (74 kg) | |||
| Media | Width | 5.91 to 20.2 in. (150 to 515 mm) | 5.91 to 30 in. (150 to 762 mm) | ||
| Thickness | Max. 39.3 mil (1.0 mm) with liner, for printing Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting |
||||
| Roll outer diameter | Max. 5.9 in. (150 mm) | Max. 6.49 in. (165 mm) | |||
| Roll weight | Max. 13.2 lb. (6 kg) | Max. 26.4 lb. (12 kg) | |||
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||||
| Printing/cutting width | Max. 18.89 in. (480 mm) | Max. 28.97 in. (736 mm) | |||
| Ink | Type | 220 ml cartridge | |||
| Colors | Cyan, Magenta, Yellow, and Black | Four color (Cyan, Magenta, Yellow, Black) Five color (Cyan, Magenta, Yellow, Black, White) |
|||
| Resolution | Max. 1,440 dpi | ||||
| Cutting speed | 0.39 to 5.9 in/s (10 to 150 mm/s) | ||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||
| Power-saving function | Automatic sleep feature | ||||
| Rated input | 100-240 Va.c. 50/60 Hz 2.1 A | 100-240 Va.c. 50/60 Hz 2.9 A | |||
| Power consumption | During operation | Approx. 185 W | Approx. 260 W | ||
| Sleep mode | Approx. 27 W | ||||
| Acoustic noise level | During operation | 62 dB (A) or less | 65 dB (A) or less | ||
| During standby | 60 dB (A) or less | 63 dB (A) or less | |||
| Included Items | Dedicated stands, power cord, media take-up unit, media holders,replacement blade for separating knife, User’s Manual, software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect) |
||||
