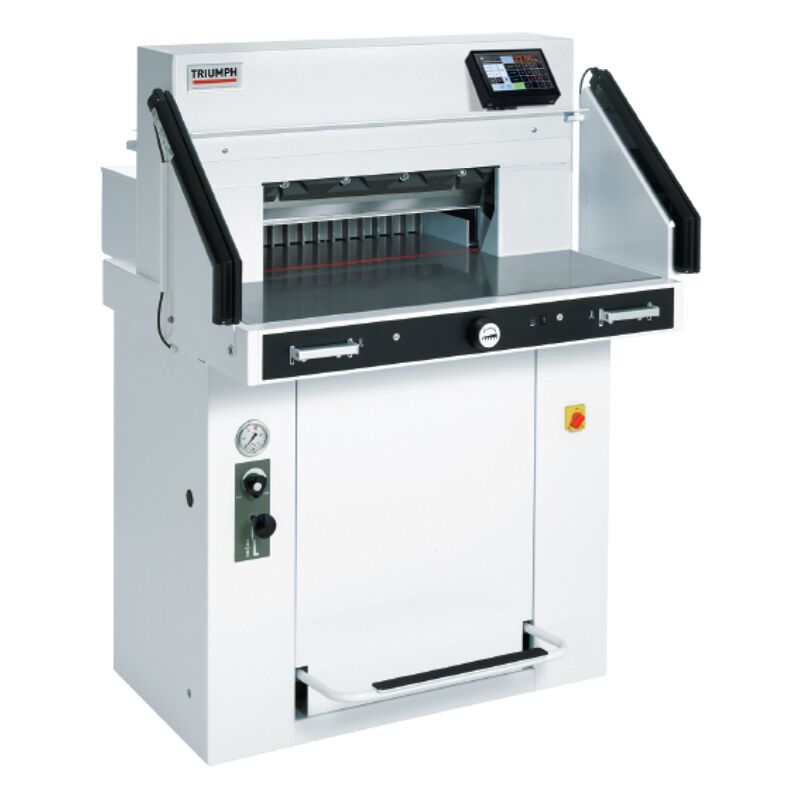

Triumph 5560 Cutter 21 5/8″ Hydraulic Programmable
The Triumph 5560 Cutter delivers precise and efficient cutting for professional print finishing environments. This hydraulic programmable cutter supports accurate trimming for demanding production workflows. The wide 21 5/8 inch cutting width handles large paper formats with ease. Hydraulic blade operation delivers smooth, powerful, and consistent cuts. The programmable control system stores multiple cutting sequences for repeat jobs. Users can recall programs quickly to reduce setup time.
An electric clamp secures paper stacks firmly before each cut. Clear controls help operators work confidently and efficiently. Safety features protect users during daily operation. The solid metal construction supports long-term use in busy shops. This cutter suits commercial printers, in-plant operations, and finishing departments. The Triumph 5560 improves productivity while maintaining clean, professional cutting results.
Product Features
- Patented Easy Cut electronic blade activation bars (2 handed operation)
- IR light beam safety curtain on front table
- Transparent electronically controlled front safety guard
- Transparent safety cover on rear table
- Main switch and safety lock with key
- Automatic blade and clamp return from every position
- Disc brake for instant blade stop
- Blade changing device
- Outside blade depth adjustment
- Blade and cutting stick can be changed without removing covers
- Hydraulic blade and clamp drive
- Electric back gauge drive with touchpad for easy programming (Up to 99 programs with 99 steps each)
- Pre-programmed for standard paper sizes, memory key for repeat cuts
- Digital measurement display (cm and inches)
- Self diagnostic system with error indication on display
- Electronic hand wheel with variable speed control for manual back gauge setting
- Clamp pressure is fully adjustable between 1,900 and 3,800 psi
- Bright LED optical cutting line
- Dual side guides on front and rear tables
- All metal construction
- German HSS blade
- Optional side tables for increased work surface
Specifications
| Cutting width | 21 5/8″ (54.93 cm) |
| Cutting height | 3 3/4″ (3 5/8″ with false clamp) 9.525 cm (9.2075 cm with false clamp) |
| Narrow cut | 3 3/4″ (3 5/8″ with false clamp) 9.525 cm (9.2075 cm with false clamp) |
| Length behind blade | 22 7/16″ (56.99 cm) |
| Dimensions | 55″ x 42″ x 54″ (64″ W with side tables) 139.7 x 106.68 x 137.16 cm (162.56 cm with side tables) |
| 5560 shipping weight | 970 lbs (1,008 with side tables) 439.985 kg (457.22 kg with side tables) |
