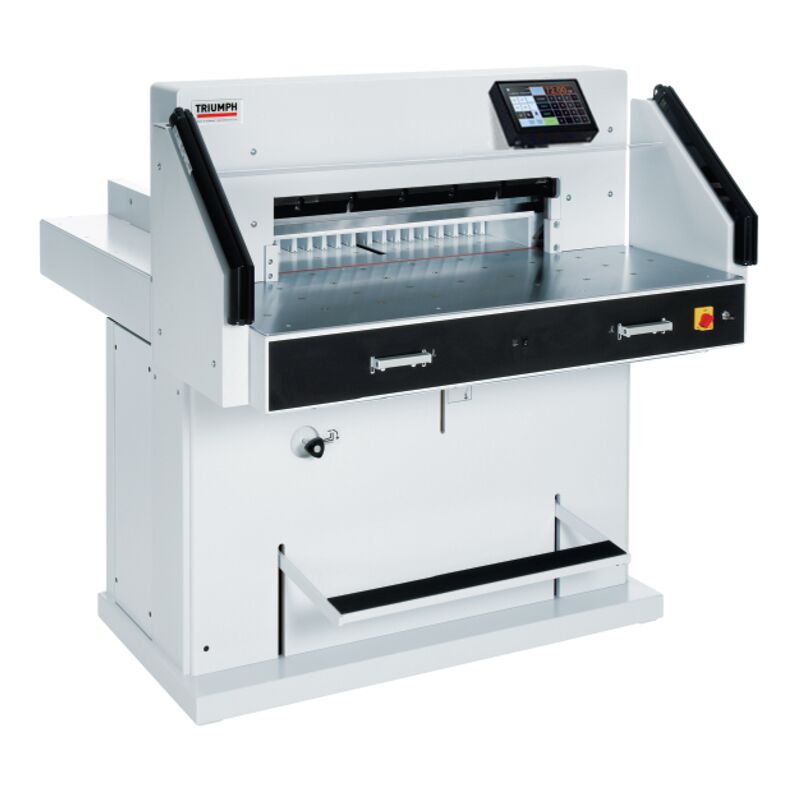

Triumph 7260 Cutter 28″ Hydraulic Programmable

Triumph 7260 Cutter 28″ Hydraulic Programmable

US$25,405.00

Get the best price on this machine, click here for quote

QUOTE

Triumph 7260 Cutter 28″ Hydraulic Programmable with IR Safety Front Light Beams

  • Triumph 7260 cutter 28″ hydraulic programmable with IR safety front light beams
  • Patented Easy Cut electronic blade activation bars (2 handed operation)

Description

Triumph 7260 Cutter 28″ Hydraulic Programmable with IR Safety Front Light Beams

  • Patented Easy Cut electronic blade activation bars (2 handed operation)
  • IR light beam safety curtain on front table
  • Main switch and safety lock with key
  • Automatic blade and clamp return from every position
  • Disc brake for instant blade stop
  • Blade changing device
  • Outside blade depth adjustment
  • Blade and cutting stick can be changed without removing covers
  • Hydraulic blade and clamp drive
  • Electric back gauge drive with touchpad for easy programming (Up to 99 programs with 99 steps each)
  • Pre-programmed for standard paper sizes, memory key for repeat cuts
  • Digital measurement display (cm and inches)
  • Self diagnostic system with error indication on display
  • Electronic hand wheel with variable speed control for manual back gauge setting
  • Clamp pressure is fully adjustable between 550 and 4,400 psi
  • Bright LED optical cutting line
  • Dual side guides on front and rear tables
  • All metal construction
  • German HSS blade
  • Optional side tables for increased work surface
Cutting width, inches 28
Cutting height, inches 3
Narrow cut, inches 3/4 (3 1/2 with false clamp)
Length behind blade, inches 28

Download (PDF, 304KB)

Dimensions (D x W x H), inches: 60 1/2 x 51 3/8 x 52 1/2 (63 D, 82 1/2 W with side tables)
Shipping weight, pounds: 1,534 (1,622 with side tables)

Heavy load

http://www.ideal-mbm.com/Paper-Finishing-Products/Triumph-Cutters/TRIUMPH-7260-228.html

Additional information

Weight 1600 lbs
