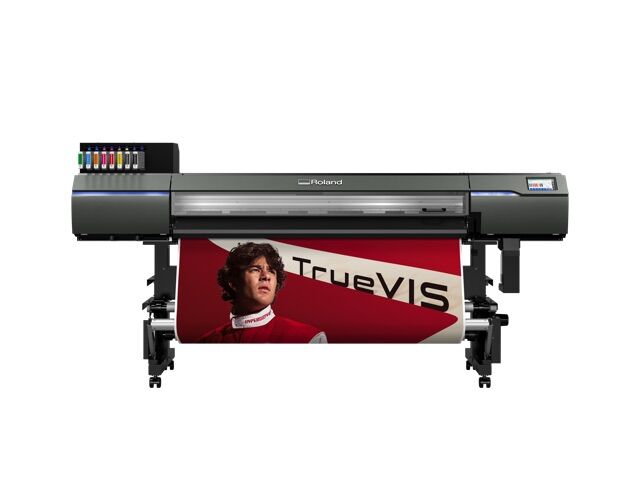

Roland TrueVIS Pro XP-640, 64″ Eco-Solvent Printer
XP-640
Eco-Solvent Roll-to-Roll Printer — 64 in.
The XP-640 is a 64-inch eco-solvent roll-to-roll printer built for production sign and graphics work. Eight ink slots take either a double CMYK configuration for throughput or an eight-colour set that reaches oranges, greens and reds outside a standard CMYK gamut. Banner output runs to 76.1 m²/h, and a take-up unit is included as standard.
Eight slots, two ways to run them
Load double CMYK when throughput matters, or CMYK with light black, orange, green and red when gamut does. The eight-colour set reaches saturated oranges, greens and reds that four-colour work cannot hit, which matters for brand-matched graphics.
Up to 76.1 m²/h on banner
Double CMYK reaches 76.1 m²/h on banner at maximum speed and 22.5 m²/h on vinyl in standard mode. The eight-colour configuration runs 38.1 m²/h and 15.2 m²/h respectively — the trade you make for the wider gamut.
64-inch rolls up to 99 lbs
Media from 259 to 1,625 mm wide and up to 1 mm thick, on rolls to 45 kg (99 lbs). A take-up unit is included rather than optional, so unattended roll-to-roll production works out of the box.
Up to 1,200 × 1,800 dpi
Fine text, small logos and gradients hold together at close viewing distance, so the same machine covers both long-range banner work and detail that will be read from a few feet away.
GREENGUARD Gold TH ink
TH ink carries UL GREENGUARD Gold certification for low VOC emissions into indoor air — the standard usually asked for on graphics installed in schools, healthcare and other occupied interiors.
Optional DU3-64 dryer
The DU3-64 dryer is available as an option where faster handling off the roll is needed, particularly on heavier ink loads and less absorbent media.
Production sign and graphics work
Wide-format output up to 64 inches, from long-run banner to detailed interior graphics.
A production roll-to-roll workflow
Choose the ink set
Double CMYK for throughput, or the eight-colour set when the job needs orange, green or red outside a CMYK gamut.
Load the roll
Media from 259 to 1,625 mm wide, up to 1 mm thick and 45 kg on the roll.
Up to 1,200 × 1,800 dpi, at speeds from 15.2 to 76.1 m²/h depending on ink set and mode.
Take up and finish
The included take-up unit winds output for unattended runs; the optional DU3-64 dryer speeds handling on heavy ink loads.
Specifications
Compatible inks
The XP-640 runs TrueVIS Pro TH ink in 500 ml pouches.
Frequently asked questions
Should I run double CMYK or the eight-colour set?
Double CMYK roughly doubles throughput — 76.1 m²/h against 38.1 m²/h on banner. The eight-colour set adds light black, orange, green and red for colours a CMYK gamut cannot reach. Choose by whether your work is volume-led or brand-colour-led.
Is a take-up unit included?
Yes, the take-up unit is standard rather than an option, so unattended roll-to-roll production is available without an additional purchase. The DU3-64 dryer is the option.
What media will it handle?
Rolls from 259 to 1,625 mm (10.2 to 64 in.) wide, up to 1 mm thick, weighing up to 45 kg (99 lbs).
Can I switch ink configurations later?
The ink switching system supports the CMYK configuration only. Plan the configuration at purchase and talk to us if you expect the mix of work to change.
What space does it need?
The machine measures 113.7 × 29.5 × 55.8 in. and weighs 417 lbs. Allow working clearance front and rear for roll loading and take-up.
Request a Quote
Tell us the work you print and we will recommend an ink configuration, then follow up with pricing and lead time for the XP-640.
