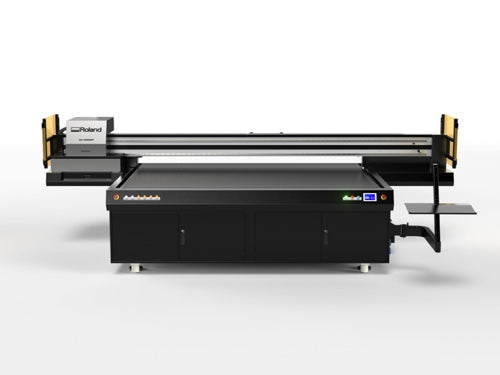

The Roland VersaObject EU-1000MF Buyer’s Guide

Commercial signmakers, display producers, and industrial decorators face constant pressure to increase daily board production while maintaining strict colour accuracy and manageable operational costs. As customer demand shifts toward direct-to-substrate decoration, relying on roll-to-roll vinyl that requires tedious manual mounting onto rigid boards creates unnecessary production bottlenecks and raises labour expenses. Roland DG developed the VersaObject EU-1000MF to address this exact challenge, delivering a heavy-duty, high-velocity production engine built to handle full-sized 4-foot by 8-foot rigid boards with total precision and exceptional economic efficiency.

The EU-1000MF Advantage

Shop Now

The VersaObject EU-1000MF brings true industrial flatbed performance to print service providers seeking high throughput without the astronomical capital cost traditionally associated with full-sized rigid printing machinery. Built around a generous 2,440 mm by 1,220 mm (4 feet by 8 feet) bed footprint, this machine allows operators to load standard architectural sheets—including foam boards, aluminum composite panels, corrugated plastics, acrylics, and plywood—directly onto the printing surface.

Investing in a dedicated industrial flatbed printer allows shop owners to eliminate time-consuming mounting steps entirely. Rather than printing onto adhesive vinyl, waiting for outgassing, and applying the film to a rigid backing with a roll laminator, graphics are jetting directly onto the finished substrate. Powered by modern LED-UV curing lamps, the ink cures instantly upon exposure, yielding durable graphics that are ready for immediately shipping, routing, or installation. Operating as a heavy-duty UV printer, the EU-1000MF delivers an unbeatable combination of speed, media versatility, and low cost per square metre.

Hardware Architecture & Engineering Innovations

To maintain flawless registration and high image quality across massive 2,440 mm by 1,220 mm boards, the EU-1000MF incorporates several advanced mechanical systems designed to simplify daily media handling and safeguard equipment longevity.

Four-Zone Electronic Vacuum Bed & Reverse Air Blowback

Unlike conventional flatbed machines that require operators to manually turn mechanical air valves or tape down unprinted bed areas to maintain suction, the EU-1000MF features a four-zone electronic vacuum bed. The system automatically concentrates suction where the media is placed, holding thin, lightweight, or slightly warped boards firmly against the bed.

Additionally, the vacuum system includes a positive air pressure (blowback) function. At the touch of a button, a cushion of air floats heavy panels above the bed surface, allowing a single operator to slide massive 45 kg/m² boards into position or unload finished graphics without scratching the bed or straining their back.

Substrate Alignment Pins & Anti-Static Control

Accurate origin placement is vital when executing double-sided printing or running multi-panel jobs. Pneumatic substrate alignment pins pop up along the bed origin at the press of a button. Operators simply butt the board edge against the alignment pins to guarantee perfect square placement, then retract the pins before printing begins.

To combat static electricity—which frequently plagues plastic materials like fluted polypropylene and acrylic sheets—the EU-1000MF includes a built-in anti-static ionization system. Neutralizing static charges prior to ink deposition eliminates ink misting and overspray, ensuring razor-sharp text and crisp line work even in dry winter shop environments.

Staggered Printheads & Liquid-Cooled LED-UV Curing

The printing carriage houses four or six industrial printheads arranged in a staggered two-row matrix. This staggered physical arrangement allows the machine to deposit base coats and CMYK artwork in a single pass without sacrificing speed.

Curing is handled by state-of-the-art LED-UV lamps equipped with an active liquid-cooling system. Liquid cooling stabilizes lamp operating temperatures, dramatically extending lamp lifespan, reducing power consumption, and protecting heat-sensitive substrates from thermal warping or heat-induced media expansion.

Economical E-US Ink System with Automatic White Agitation

Operating expenses are controlled through Roland’s high-density E-US ink formulation. Packaged in 1-litre bottles that feed into 2.5-litre main ink tanks, the system allows operators to top up ink on the fly during continuous production runs. E-US ink is GREENGUARD Gold certified, meeting strict low-chemical-emission standards for sensitive indoor environments like hospitals, schools, and daycare centres.

For setups utilizing White ink, an automated internal agitation system runs continuously in the background. By gently circulating White ink through the supply lines and reservoir, it prevents pigment settling, eliminates nozzle clogs, and maintains high-opacity coverage across dark or transparent materials.

Technical Specifications Matrix

The following table outlines the complete mechanical, electrical, and physical specifications for the VersaObject EU-1000MF:

High-Profit Applications & Commercial End Products

The sheer bed size and vertical clearance of the EU-1000MF allow print shops to enter high-margin commercial markets that are inaccessible to standard roll-to-roll equipment.

Architectural & Structural Signage

Commercial sign shops can print directly onto heavy aluminum composite material (ACM), MDO plywood, and thick PVC boards. Producing rigid real estate signs, construction site hoardings, and long-term exterior signage on a large format printing flatbed eliminates lamination costs and ensures weather-resistant durability. For large-scale promotional displays like highway billboards or perimeter fencing, direct board printing delivers impressive square-footage output per hour.

Retail Environments & Event Displays

Retailers rely on dimensional point-of-purchase (POP) displays, standees, and suspended promotional banners to capture consumer attention. The EU-1000MF handles heavy fluted cardboards and foam boards effortlessly, allowing shops to print, cut, and assemble custom retail fixtures. During major conventions, producing rigid trade show graphics, exhibition wall panels, and directional signage on rigid sheets yields impressive profit margins.

Using White and Clear Gloss inks expands creative options even further. Shops can produce vibrant window graphics on clear acrylic sheets by printing a White layer sandwiched between two colour layers, creating double-sided retail graphics that look identical from inside and outside the store.

Interior Design, Fine Art & Specialty Substrates

Direct printing extends far beyond standard signboards. The EU-1000MF can print directly onto wooden doors, acoustic ceiling panels, leather, fabric, and ceramic tiles to create custom interior decor installations for hotels, restaurants, and corporate offices.

When printing on fine art canvas or textured wood, applying multiple passes of Clear Gloss ink simulates dimensional oil painting brush strokes and raised textures. Decorators can even produce custom textured wallpaper panels and wall plaques with tactile 3D finishes that command premium prices.

Commercial Complements & Hybrid Workflows

While the EU-1000MF is built for rigid media, print service providers often pair flatbed output with flexible roll-to-roll items to deliver complete branding packages for commercial clients. A corporate rebrand might combine rigid architectural entrance signs printed on the flatbed with high-impact promotional stickers, custom vehicle car wraps, and fleet car decals produced on roll-fed devices. Having a complete equipment lineup ensures your shop never turns down a client request.

For specialty textile accounts, direct-to-substrate UV jetting on rigid board backings complements soft-signage and textile printing giving decorators the ability to supply framed fabric art, stretched canvas prints, and rigid retail backdrops under a single roof. Producing custom cut-out signs on dense Sintra or Gatorfoam boards gives signmakers a distinct competitive edge when bidding on architectural interior packages.

Workflow Automation & RIP Integration

Hardware power must be matched by intelligent software controls to maintain efficient daily shop operations. The EU-1000MF comes standard with Roland’s powerful VersaWorks 7 RIP software.

VersaWorks 7 RIP Software Features

Built on a dual Harlequin processing engine, VersaWorks 7 natively processes complex vector files containing drop shadows, transparencies, and multi-layered PDF assets without rendering glitches.

Automated Special Colour Layer Generation: Create White or Clear Gloss flood coats and spot layers automatically from artwork boundaries with a single mouse click.
Advanced Tiling & Nesting: Easily divide oversized mural artwork across multiple 4' x 8' boards or nest dozens of smaller graphics onto a single sheet to minimize substrate waste.
Built-in Spot Colour Libraries: Includes native Roland DG Color System and Pantone libraries for precise corporate brand matching across rigid substrates.

Roland DG Connect Mobile Dashboard

The EU-1000MF integrates with the Roland DG Connect cloud platform. Shop managers can track real-time machine activity, monitor ink volume in the 2.5-litre main tanks, calculate exact job consumption costs, and receive automated maintenance reminders directly on their mobile device or desktop computer.

The Roland VersaObject EU-1000MF represents a transformative capital investment for print service providers looking to scale up rigid board production. By combining a true 4-foot by 8-foot bed size with a 4-zone electronic vacuum system, pneumatic alignment pins, liquid-cooled LED-UV curing, and low-cost E-US ink, this machine provides the speed, precision, and economic return needed to dominate today's competitive graphic arts industry.
