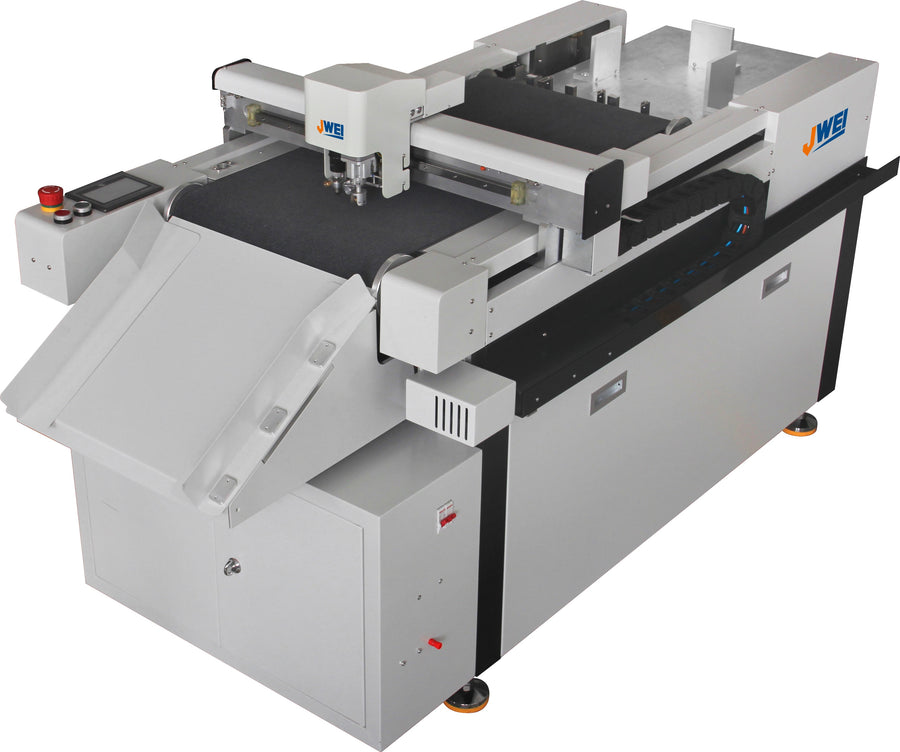

LST-0604-RM Box Cutting and Creasing Plotter
The best solution for Digital Cutting!
- Digitally cut any shape label on up to A3 sheets. Prototype up to 400gsm folding cartons.
- Best cost-efficient digital label, folding carton cutting, creasing and plotting.
- No cutting dies.
- Versatile fast sheetfed production
Configuration
- Industrial CCD registration system
- Smart controlling system
- Smart sheet separation
Specification
| Function | Thorough cutting/Kiss cutting/Creasing/Plotting/Laser Locating | ||
| Max. Speed | Max1000mm/s | ||
| Max. Cutting Depth | ≤1.5mm | ||
| Cutting Media | Kinds of plastic board, PVC board, PU, cardboard, fibrous board,rubber sheet and marking film, etc. | ||
| Blade/Wheel | Special tungsten carbide blade/ Creasing tool | ||
| Media Fixture Method | Vacuum suction | ||
| Repeat Precision | ≤0.1mm | ||
| Programmable Resolution | 0.025 / 0.01 / 0.1 available | ||
| Interface | Ethernet port | ||
| Buffer Memory | 1G | ||
| Command Mode | HP-GL compatible format | ||
| Operational Panel | Liquid crystal display panel with push contacts | ||
| Transmission system | Imported servo driver; synchronous belt | ||
| Power Supply | AC 220V +/- 10%, 50HZ / 60HZ | ||
| Fuse | 2A、6A、30A | ||
| Working Environment | 10 to 35 deg.C | ||
| Effective Cutting Area | 600mm*400mm | ||
Product details
Manufacturer
Printfinish
Part #
—
Weight
100.0 kg
Warranty
Manufacturer standard
