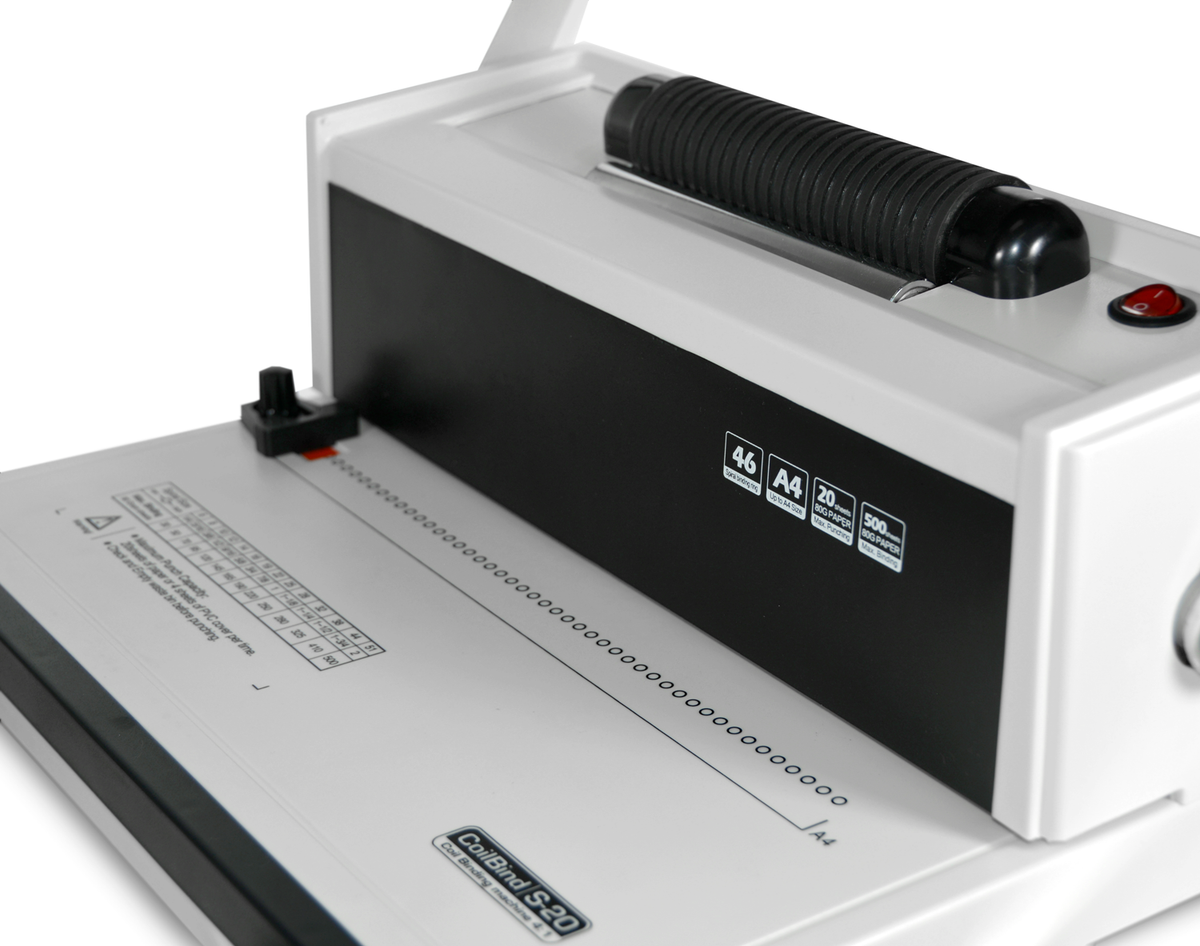

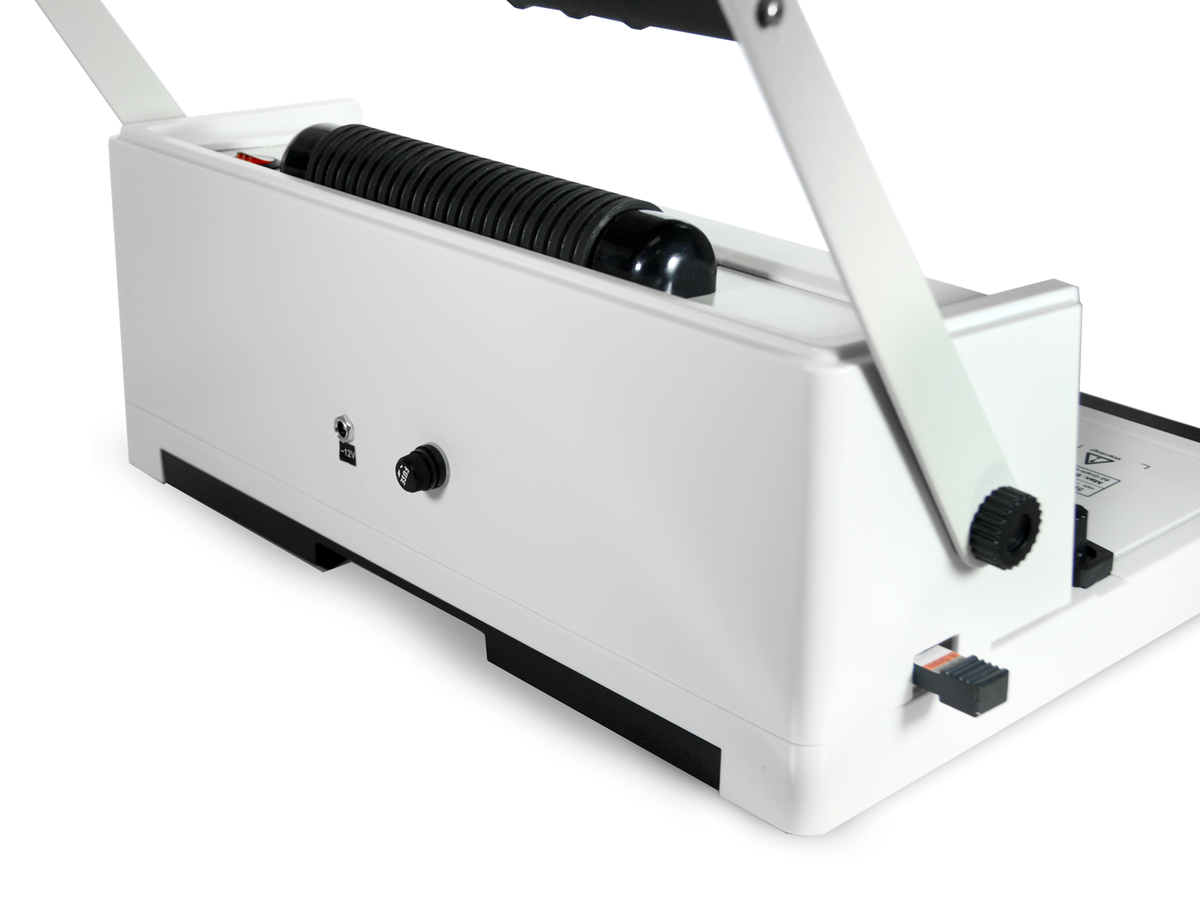

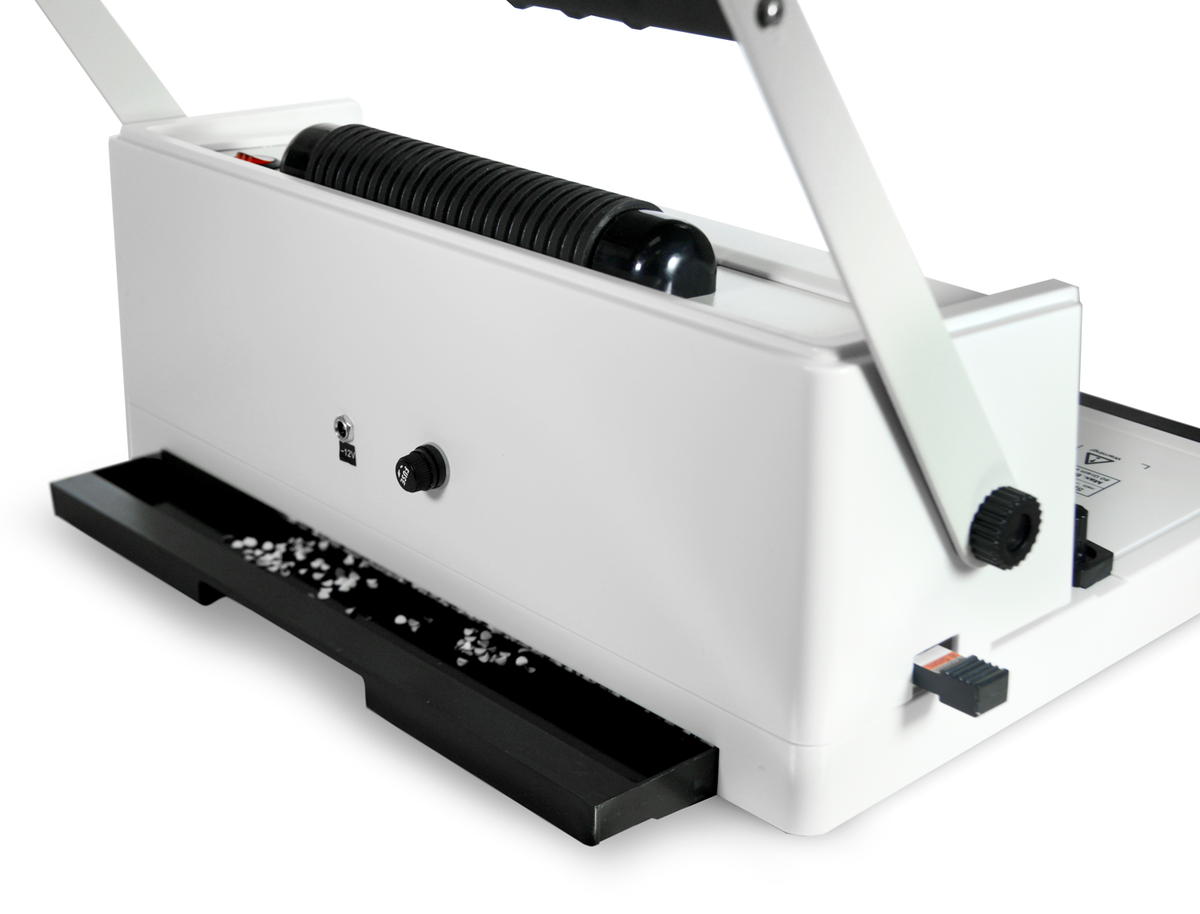

CoilBind S-20 Coil Punch & Binding Machine
Electric Coil Inserter
Adjustable Margins
Full Handlebar
4:1 Pitch Coils
Value Kit - Free box of 100 spiral coils 8mm (52 sheets) + Crimper tool (Coil Crimper Pliers).
One-Year Manufacturer Warranty
$234.90CAD
Shown in your selected currency. Taxes and shipping calculated at checkout.
SKU VOR030S20
CoilBind S-20
20-sheet coil punch and binding machine with electric coil inserter
The CoilBind S-20 is a 20-sheet coil binding machine for busier offices and schools. A full-width handlebar punches 46 holes in one pull, the electric roller spins coils through in seconds, and the value kit includes 100 5/16" (8 mm) coils and a free crimper.
20sheets per punch
46punch holes
11.8"max binding width
100free 5/16" (8 mm) coils
S-20 coil binding machine features
20-sheet punch
Punch up to 20 sheets of 20 lb bond per pull, so long reports take fewer passes.
Electric coil inserter
The top-mounted roller feeds coils through every hole automatically.
Full handlebar
Operate left-handed, right-handed or with both hands.
Adjustable margins
Three margin depths: 3/32", 11/64" and 1/4" (2.5, 4.5 and 6.5 mm).
Value kit included
Ships with a box of 100 5/16" (8 mm) coils (up to 52 sheets each) and crimping pliers.
Fixed dies
All 46 dies punch every pull for fast, consistent letter and A4 binding.
How to bind a document with the S-20
1
Punch
Stack up to 20 sheets against the guide, set the margin, and pull the handlebar.
2
Choose a coil
Pick a coil about 1/16" (2 mm) larger than the stack. 5/16" (8 mm) coils bind up to 52 sheets.
3
Insert electrically
Start the coil and rest the spine on the roller to spin it through.
4
Crimp
Trim and bend both ends with the included crimping pliers.
S-20 specifications
| Model | CoilBind S-20 |
|---|---|
| SKU | VOR030S20 |
| Punch capacity | 20 sheets (20 lb bond / 80 gsm) |
| Handle | Full handlebar (left, right or two-handed) |
| Punch type | Manual |
| Coil insertion | Electric roller or manual |
| Die type | Fixed |
| Coil pitch | 4:1 (1/4" / 6.35 mm hole spacing) |
| Number of holes | 46 |
| Max binding width | 11.8" (300 mm) |
| Adjustable margin | 3/32", 11/64" & 1/4" (2.5, 4.5 & 6.5 mm) |
| Max binding thickness | Up to 2" (50 mm coil) |
| Warranty | 1-year manufacturer defective parts |
| Warranty | 1-year manufacturer defective parts |
| Shipping box | 18" × 9" × 14" (45.7 × 22.9 × 35.6 cm) |
| Shipping weight | 20 lb (9.1 kg) |

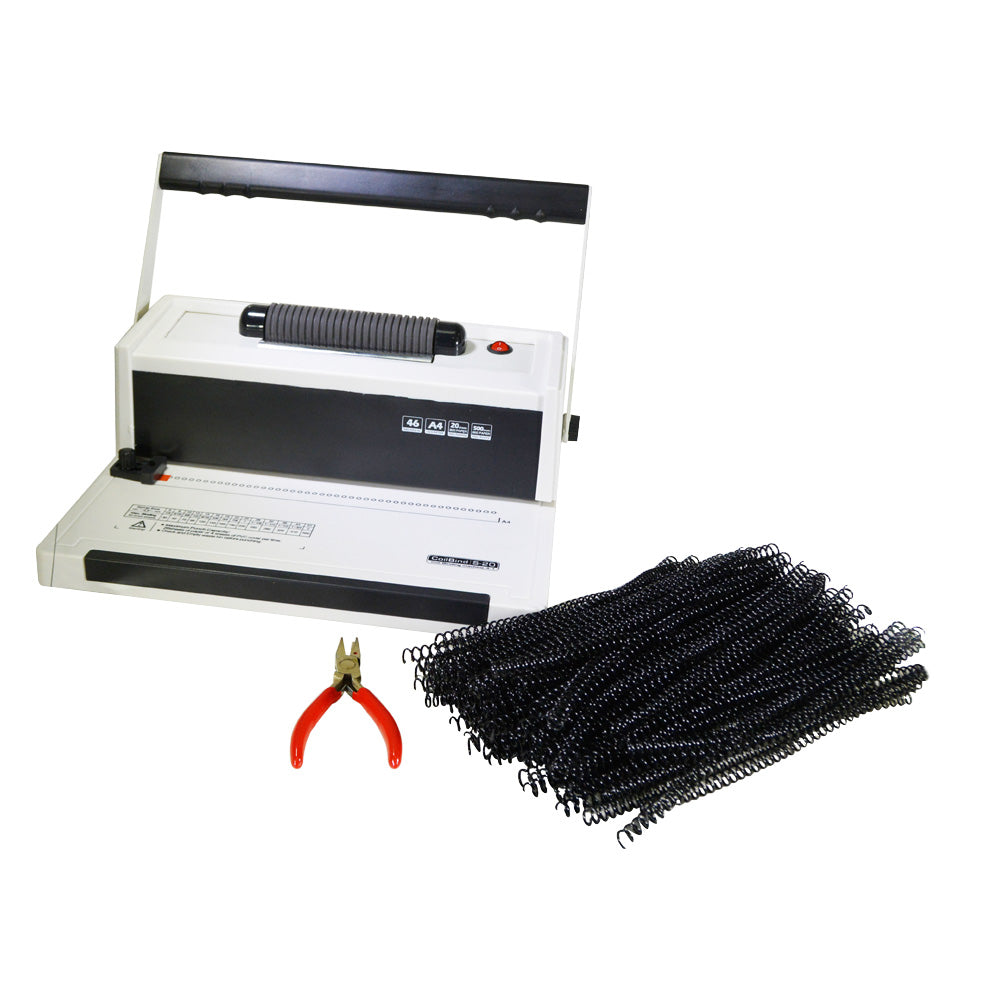

What's in the box
- CoilBind S-20 coil punch and binding machine
- Box of 100 5/16" (8 mm) plastic coils (binds up to 52 sheets)
- Coil crimping pliers
Compatible coils and supplies
The S-20 uses 4:1 pitch plastic spiral coils. Choose a coil about 1/16" (2 mm) larger than the thickness of your punched stack so pages turn freely. Sheet counts below are approximate for 20 lb bond (80 gsm) paper.
| Coil diameter | Metric | Approx. sheets |
|---|---|---|
| 1/4" | 6 mm | 30 |
| 5/16" | 8 mm | 52 |
| 3/8" | 10 mm | 65 |
| 7/16" | 12 mm | 80 |
| 9/16" | 14 mm | 100 |
| 5/8" | 16 mm | 120 |
| 3/4" | 20 mm | 160 |
| 1" | 25 mm | 210 |
| 1-1/4" | 32 mm | 280 |
| 1-1/2" | 38 mm | 330 |
| 2" | 50 mm | 440 |
Compare CoilBind coil binding machines
All four models punch 46 holes at 4:1 pitch across an 11.8" (300 mm) edge and bind up to 2" (50 mm) thick. See the full CoilBind range.
Prices in
| S-12 | S-15 | S-20 | S-25A | |
|---|---|---|---|---|
| Punch capacity | 12 sheets | 12 sheets | 20 sheets | 20 sheets |
| Number of holes | 46 | 46 | 46 | 46 |
| Handlebar | Right-hand | Full | Full | Full |
| Electric coil inserter | — | ✓ | ✓ | ✓ |
| Disengageable dies | — | — | — | ✓ All 46 |
| Crimper included | — | ✓ | ✓ | ✓ |
| Coils included | 1/4" (6 mm) box | — | 100 × 5/16" (8 mm) | 100 × 5/16" (8 mm) |
| Warranty | 1 year | 1 year | 1 year | 2 years |
| Shipping box | 20.8" × 14.3" × 7.5" (52.8 × 36.3 × 19.1 cm) | 15" × 11" × 5" (38.1 × 27.9 × 12.7 cm) | 18" × 9" × 14" (45.7 × 22.9 × 35.6 cm) | 18" × 19" × 14" (45.7 × 48.3 × 35.6 cm) |
| Shipping weight | 14.4 lb (6.5 kg) | 18 lb (8.2 kg) | 20 lb (9.1 kg) | 21 lb (9.5 kg) |
| Price | $124.90 | $174.95 | $234.90 | $349.95 |
| View S-12 → | View S-15 → | You're viewing | View S-25A → |
CoilBind S-20 FAQ
How many sheets can the CoilBind S-20 punch at once?
Up to 20 sheets of 20 lb bond (80 gsm) per pull, across 46 holes. Finished documents can be up to 2" thick.
What's the difference between the S-20 and S-25A?
The main difference is the dies. The S-20 has fixed dies, so every pull punches all 46 holes. The S-25A has disengageable dies for custom paper sizes and carries a 2-year warranty instead of 1 year. Both include 100 coils and a crimper.
What comes in the box with the S-20?
The machine, a box of 100 5/16" (8 mm) plastic coils and coil crimping pliers.
Is the S-20 good for left-handed users?
Yes. The full-width handlebar can be pulled from either side or with both hands.
What coil sizes work with the S-20?
Any 4:1 pitch plastic coil from 1/4" to 2" (6 to 50 mm). The included 5/16" (8 mm) coils bind up to about 52 sheets.
What warranty does the S-20 have?
A 1-year manufacturer defective parts warranty.
