Akiles Diamond 6 / Diamond 7 Electric Round Cornering Machine
Description

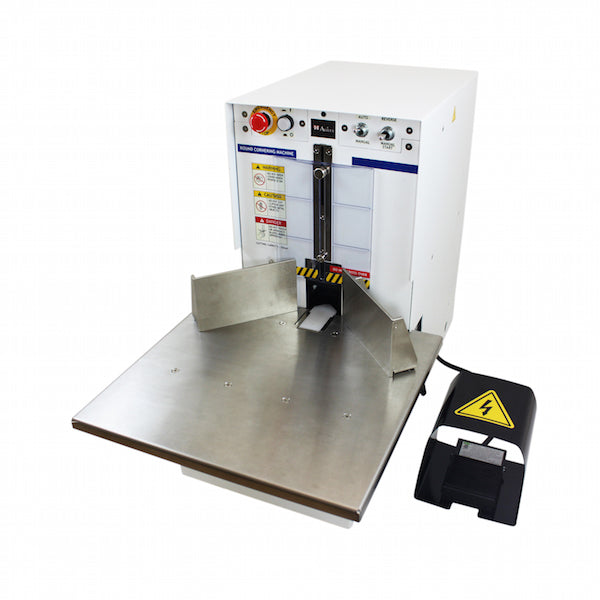

Akiles Diamond 6 / Diamond 7 Electric Round Cornering Machine
The Akiles Diamond 6 and Diamond 7 are commercial-duty electric corner rounders for print shops and binderies. Choose the Diamond 6 for 2-3/8 in. (60 mm) stacks with slot-punching, or the Diamond 7 for 2-3/4 in. (70 mm) stacks with a detachable pressing bar and a 200 W motor. Both work with all standard materials — PVC, polyester, leather, paper, polypropylene and more — for covers, cards, menus, invitations and packaging.
- Diamond 6: cuts 2-3/8" (60 mm) or 600 sheets of 20 lb paper; slot die up to 2 mm; 100 W motor; 104 lb.
- Diamond 7: cuts 2-3/4" (70 mm) or 700 sheets of 20 lb paper; detachable pressing bar; half-moon knife; 200 W motor; 110 lb.
- 7 interchangeable dies — 1/8", 1/4", 3/8", 1/2", 5/8", straight cut, plus slot (Diamond 6) or half-moon (Diamond 7). 1/4" die included.
- Protective safety cover keeps fingers out of the cutting area during use.
- Patented upper die design and micro-adjustable lower die for smooth, accurate cuts.
- Manual and auto mode — switch between the heavy-duty foot pedal and manual hand operation.
- Large work table with built-in tool box and scrap bin.
Specifications
| Model | Diamond 6 | Diamond 7 |
| Maximum Rounding Capacity | 2-3/8" (60 mm) — 600 sheets (20 lb) | 2-3/4" (70 mm) — 700 sheets (20 lb) |
| Maximum Slot Capacity | 2 mm | N/A |
| Included Die | 1/4" | |
| Available Dies | 1/8", 1/4", 3/8", Straight and Half-Moon (1/2" and 5/8" special order); Slot die on Diamond 6 only | |
| Detachable Pressing Bar | No | Yes |
| Protective Safety Cover | Included | |
| Work Table | Included | |
| Storage & Trash Bin | Included | |
| Motor | 100 W | 200 W |
| Dimensions | 24-5/8" W x 12-5/8" L x 17-1/2" H | |
| Weight | 104 lbs | 110 lbs |
| Warranty | 1 Year | |
Knives & accessories
Blade sets for both models: 1/8" (AD6/7-K3.5), 1/4" (AD6/7-K6), 3/8" (AD6/7-K10), 1/2" (AD6/7-K13), 5/8" (AD6/7-K16); Straight Cut Knife AD6/7-K15; Large Work Desk AD6/7-WD (20" x 11-3/4"). Diamond 6 only: Slot Punch Die AD6-SLOT. Diamond 7 only: Half-Moon Knife AD7-K21 and Half-Moon Knife Regulator AD7-KHMBR.
Warranty: 1 Year Manufacturer
Specifications
- Brand
- Akiles
- Product type
- Machine
- SKU
- AD6
- Model
- Diamond 6, Diamond 7
- Shipping weight
- 120.0 lb
Shipping and returns
Ships from our Toronto warehouse to Canada and the US. Returns and exchanges follow our return policy.
