Focus Inc. · Direct-to-Packaging
Cobra-691S
Single-pass HP PageWide printer with a 60 cm friction feeder
Up to 40 m per minute
— print straight onto corrugated boxes, pizza boxes, bags, envelopes and cups, up to 250 mm (9.84 in.) thick.

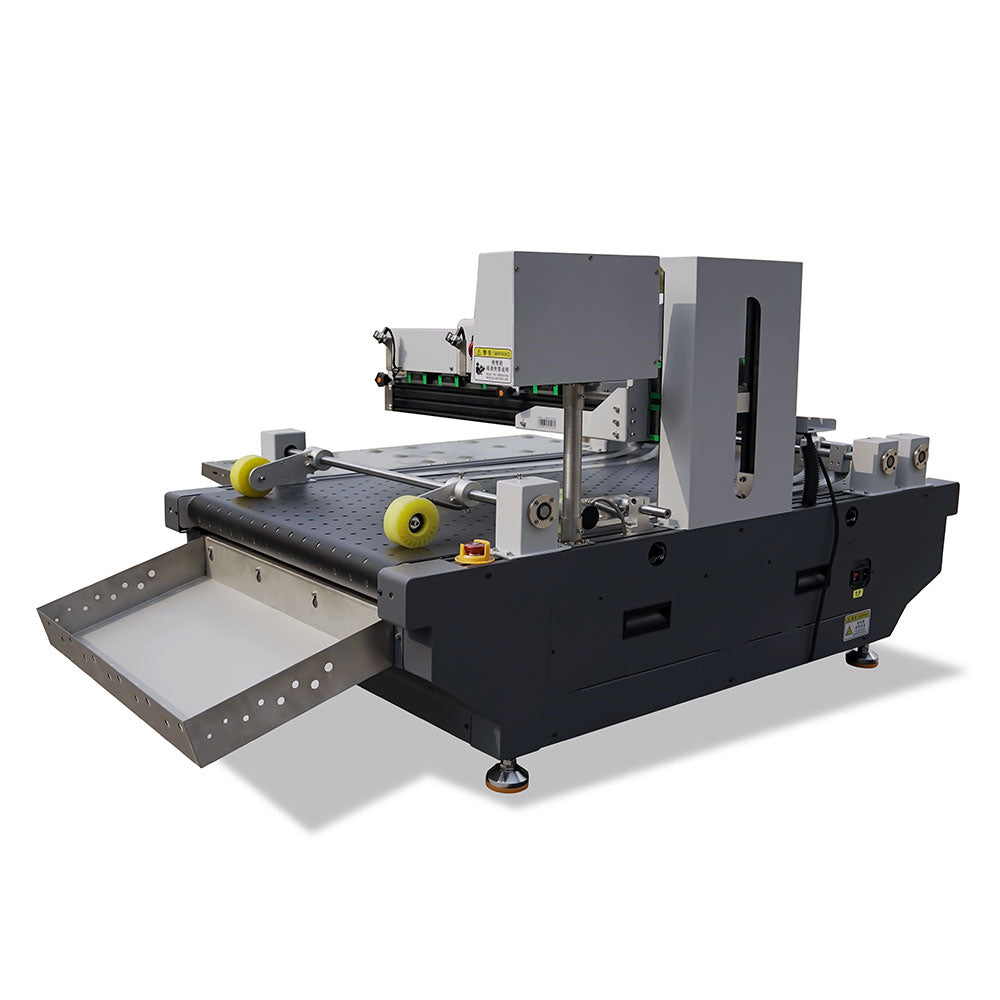

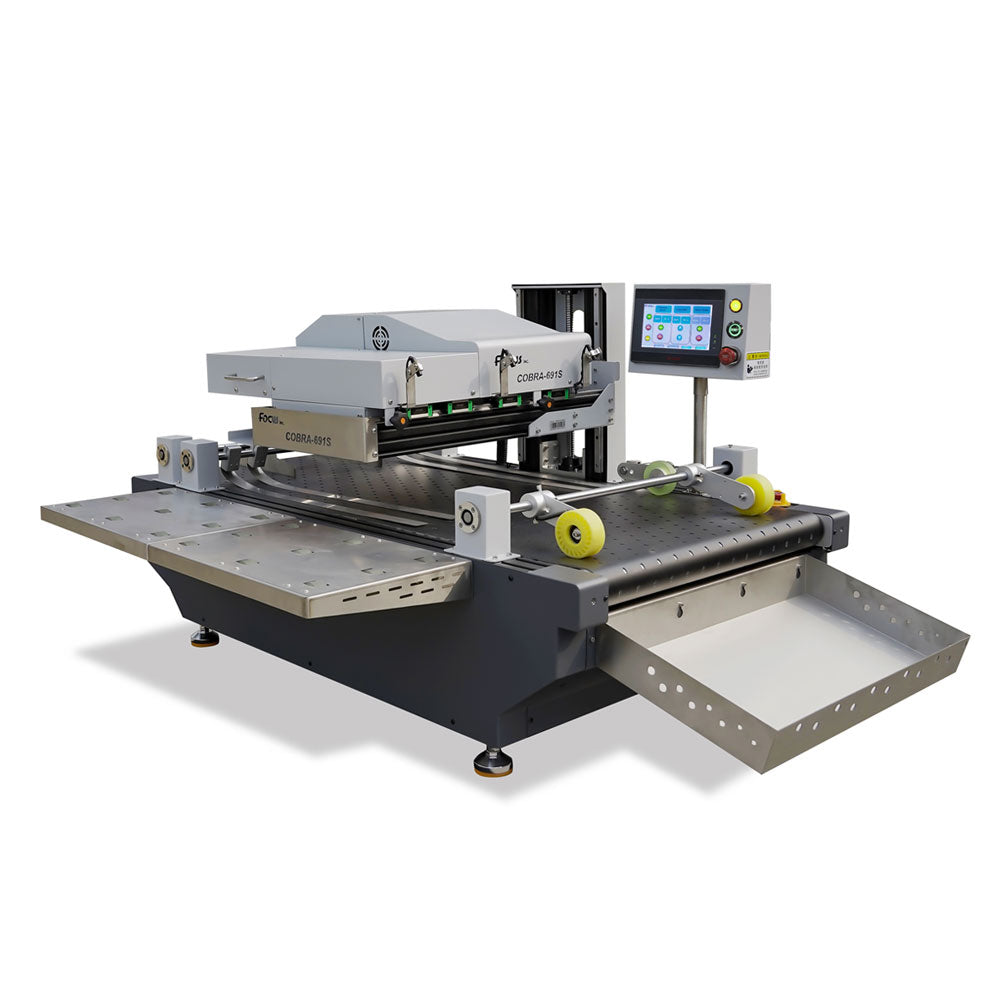

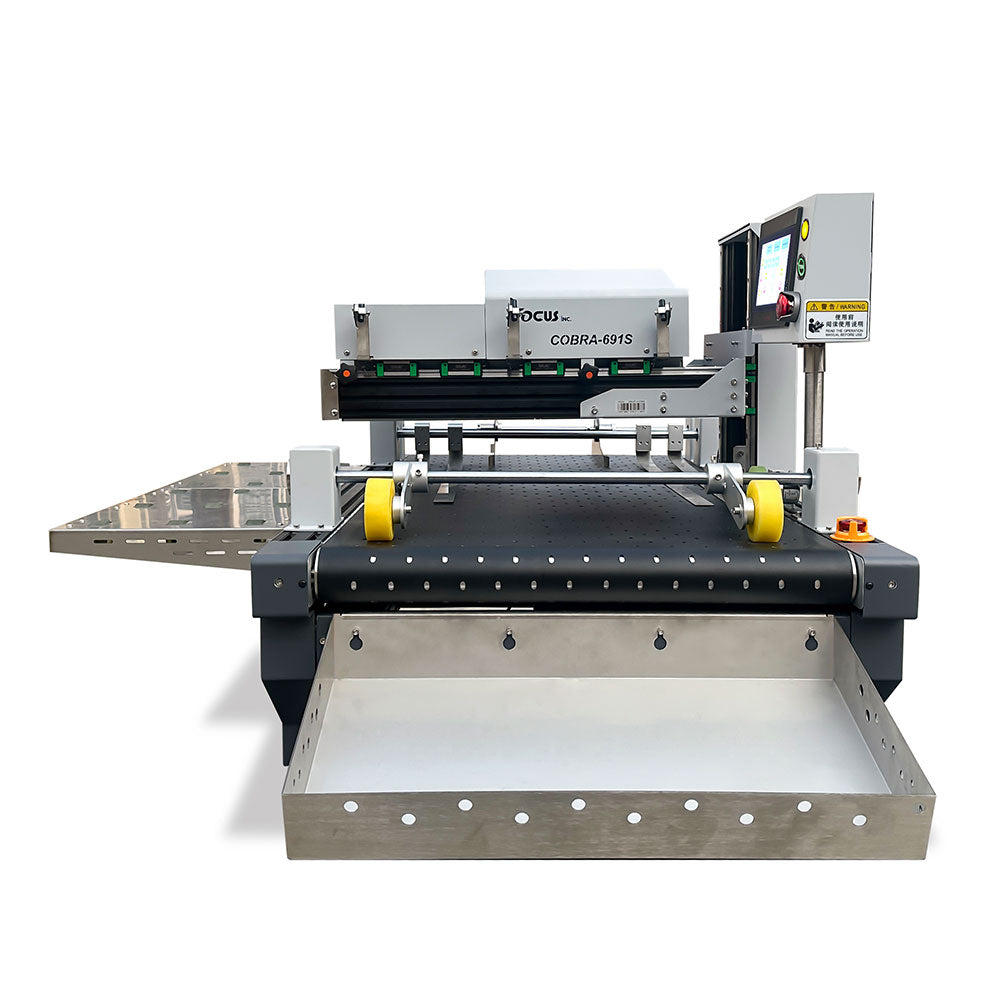

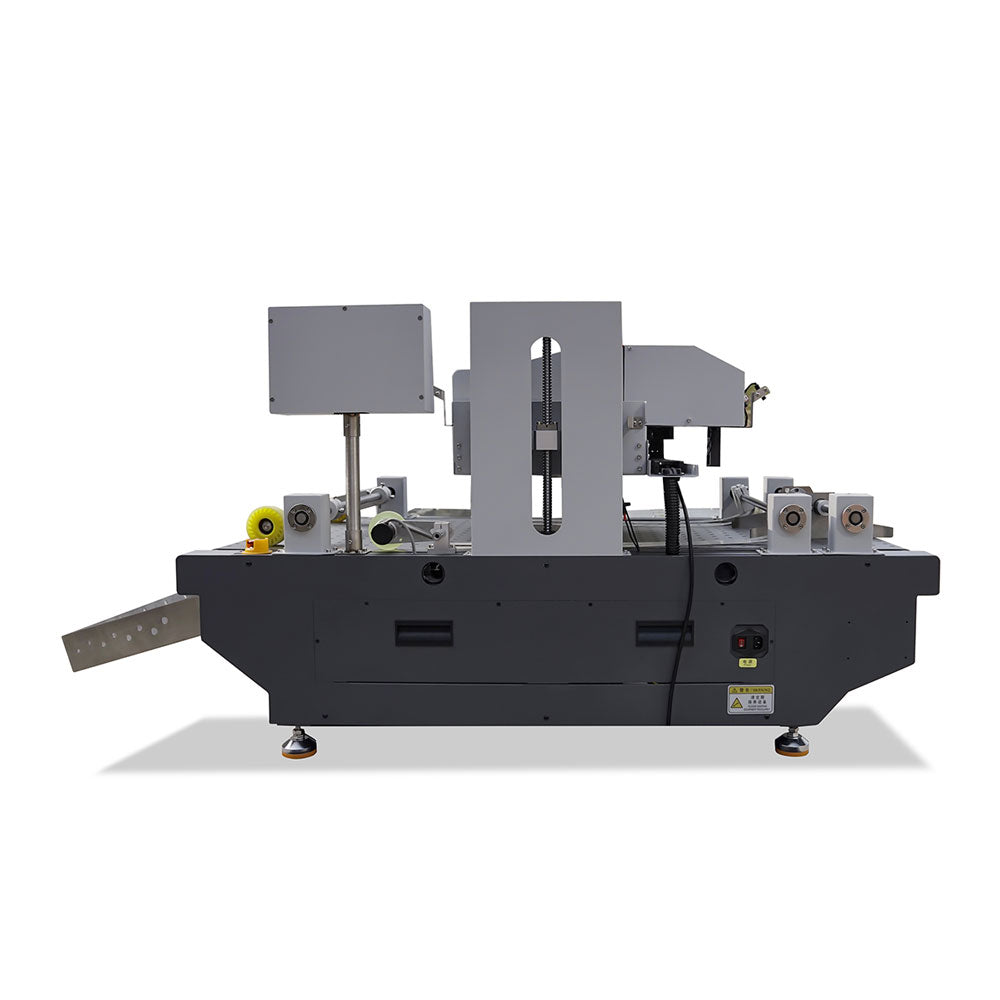

The Cobra-691S puts HP PageWide bubble-jet heads over a vacuum conveyor with an integrated friction feeder and adjustable receiving tray, so you can print full-colour branding, lot codes and short-run designs directly on finished packaging instead of ordering pre-printed stock.
Price shown in your selected currency. Shipping, installation and training are quoted separately.
HP PageWide
One or two print heads
Each HP PageWide head carries 42,240 nozzles and prints a 210 mm (8.26 in.) swath. Add the second head for a 420 mm (16.53 in.) print width.
Single Pass
10 to 40 metres per minute
Media runs under the fixed heads once, at up to 40 m/min, with resolutions from 1200 × 300 to 1200 × 1200 dpi driven by a 1200 dpi real-time encoder.
Cantilever Design
Oversized boxes, no tools
Standard feed width is 600 mm (23.6 in.). Remove the side media fender and the open, cantilevered frame takes loads up to 1200 mm (47.2 in.) wide.
Head Protection
Built for corrugated
Adjustable pressure plates and a carriage anti-scratch kit protect the heads from warped board, while electronic height control handles stock up to 250 mm thick.
What the Cobra-691S prints on
Aqueous dye or pigment ink straight onto absorbent packaging and paper stock, from flat envelopes to finished boxes up to 250 mm tall.
A four-step workflow
From a stack of blanks to printed packaging in a single pass, run from one touch screen.
Load the feeder
Stack blanks, bags or envelopes in the friction feeder. The laser guideline system (4 to 6 lines) sets your margins.
Set the height
Raise or lower the print carriage from the touch screen to match the stock, up to 250 mm (9.84 in.).
Print in one pass
The vacuum conveyor carries each piece under the PageWide heads at 10 to 40 m/min. The built-in control and RIP software runs the job.
Collect and pack
Finished pieces land on the adjustable receiving tray, ready to fold, fill or ship.
Specifications
Key specs at a glance, with the full technical sheet below.
Printing method
HP PageWide bubble-jet
Print heads
1 or 2 × HP PageWide
Print width
210 mm (1 head) / 420 mm (2 heads)
Speed
10–40 m/min
Resolution
Up to 1200 × 1200 dpi
Max. media thickness
9.84 in. (250 mm)
Ink
Aqueous dye or pigment, CMYK, 500 ml tanks
Power
220 V single-phase, 20 A
Printing
Printing method
HP PageWide bubble-jet print technology
Print head
1 or 2 HP PageWide print heads
Nozzles
42,240 per head (4,224 per row, 10 rows per head)
Print resolution
1200 × 300, 1200 × 400, 1200 × 600, 1200 × 1200 dpi
Print speed
10–40 m/min
Head protection
Carriage anti-scratch kit
RIP software
Control and RIP all in one
Control interface
Touch screen with PLC
Media
Media types
Corrugated paper, pizza boxes, shopping bags, coffee bags, paper cups, envelopes, cards, napkins, tissue
Max. printing area
1 head: 8.26 in. (210 mm) × unlimited length; 2 heads: 16.53 in. (420 mm) × unlimited length
Max. load size
23.6 in. (600 mm) wide with side fender; 47.2 in. (1200 mm) wide without it; unlimited length
Max. thickness
9.84 in. (250 mm)
Margin alignment
4–6 automatic laser guidelines
Height control
Electronic up/down, from the touch screen
Auto media sender
Automatic card and paper release sender (optional)
Vacuum system
420 W, touch-screen control (optional)
Ink
Type
Aqueous, dye or pigment
Colours
Black, cyan, magenta, yellow
Tank capacity
500 ml per colour
Physical & site
Machine size (L × W × H)
51.7 × 31.0 × 30.6 in. (1,315 × 788 × 776 mm)
Packing size
63.8 × 34.9 × 39.0 in. (1,620 × 887 × 990 mm)
Net / gross weight
429 lb (195 kg) / 605 lb (275 kg)
Power
20 A single-phase 220 V, 50 Hz
Connectivity
Ethernet
Noise
75 dB(A) or less
Operating environment
59–86 °F (15–30 °C), 40–80% humidity
Included items
Print cable, cleaning kit, USB drive with manuals and installation videos
Control PC (bundled software)
Operating system
Windows 7/10 (64-bit) recommended
CPU / RAM
Intel Core i5 2.5 GHz or better / 8 GB or more
Display
1,152 × 854 at 16-bit colour or better
Disk
1 GB to install, 100 GB working space
Frequently asked questions
Should I order one print head or two?
One head prints a 210 mm (8.26 in.) wide band, which covers most logos, labels and codes on box panels. Two heads double that to 420 mm (16.53 in.) for larger artwork. Tell us what you print and we will recommend a configuration.
How big a box can it print on?
Pieces up to 250 mm (9.84 in.) thick and 600 mm (23.6 in.) wide feed as standard. Remove the side media fender and the cantilevered frame accepts loads up to 1200 mm (47.2 in.) wide. Length is not limited.
What ink does it use?
Aqueous dye or pigment ink in CMYK, from 500 ml refillable tanks with ink-shortage alarms. Aqueous ink suits absorbent stock such as corrugated board, kraft bags and paper.
What power does it need?
The spec sheet lists a 20 A single-phase 220 V supply. Confirm your site power with us before delivery and we will make sure the installation matches.
What computer does it need?
A Windows 7 or 10 (64-bit) PC with an Intel Core i5 at 2.5 GHz or better, 8 GB of RAM and 100 GB of working disk space. The control and RIP software is bundled.
Is the feeder and vacuum included?
The 60 cm friction feeder is part of the system. The 420 W media vacuum and the automatic card and paper release sender are optional; ask us to include them in your quote.
Request a quote
Tell us what you print on, how many pieces a day and whether you need one head or two, and we'll follow up with pricing, lead time and installation details.
