Description

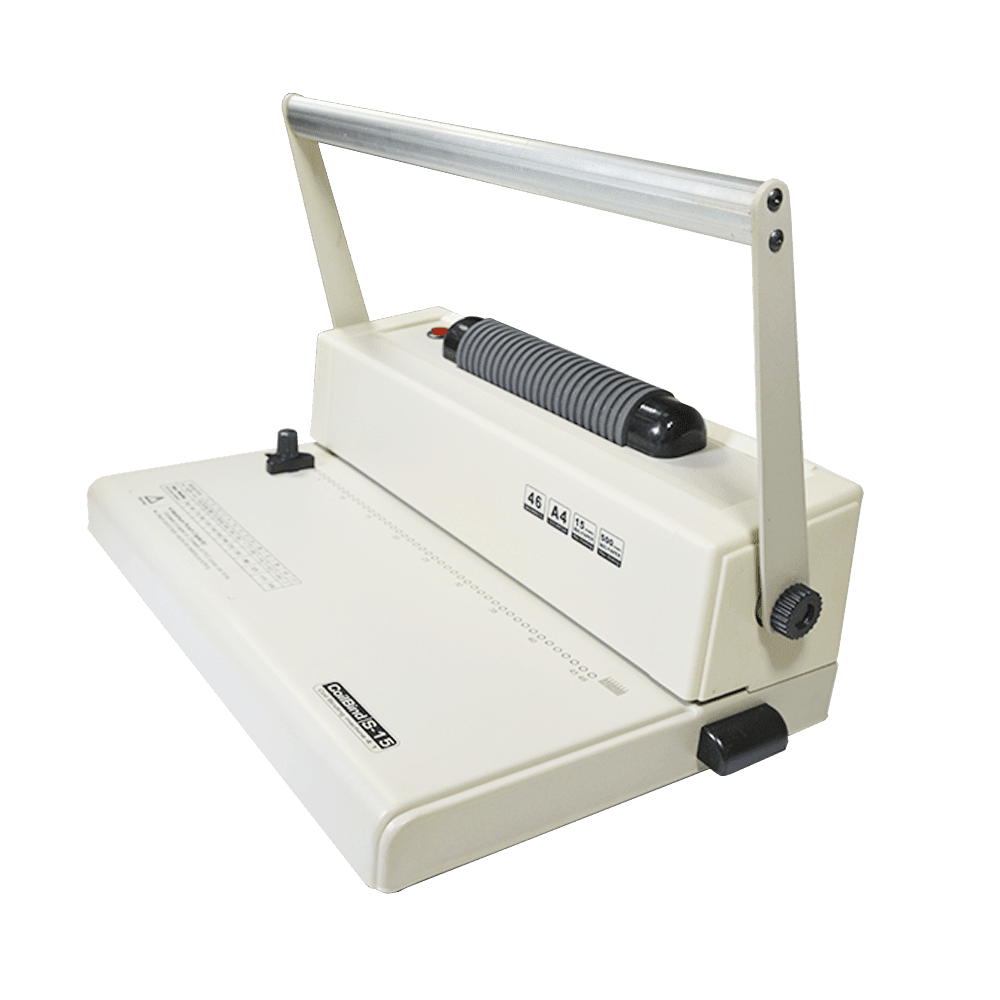

Coilbind S-15 Manual Spiral Coil Binding Machine
The coil binding machine boasts a punch capacity of up to 12 sheets (80g paper) at once. It is made even easier with its full handlebar that allows for left-handed, right-handed, or two-handed operation!
Its lightweight design allows it to be portable within a workspace. This makes it an excellent addition to any school or small office environment.
This binding machine utilizes 4:1 pitch plastic binding coils. Which in turn, can be inserted by either using the rapidly spinning electric coil roller on top of the machine or manually twisting them into the document.
Interested in Coil Binding Machines? Check out our other coil binding machines
The Coilbind S-15 Manual Spiral Coil Binding Machine Specifications
|
Feature
|
Specification Details
|
|---|---|
|
Model
|
CoilBind S-15 (tabletop design)
|
|
Punch Capacity
|
Up to 12 sheets of 20lb bond / 80g paper per manual punch
|
|
Binding Capacity
|
Arbitrary (up to 2″ thick)
|
|
Max. Binding Width
|
11.8″ (300mm)
|
|
Coil Inserter
|
Built-in, rapidly spinning electric coil roller (or manual twisting)
|
|
Disengageable Pins
|
None (Fixed die type)
|
|
Side Margin Guide
|
Yes (Adjustable)
|
|
Depth Margin Settings
|
2.5 mm, 4.5 mm, and 6.5 mm (5/64″, 1/8″, and 3/16″)
|
|
Pitch & Holes
|
4:1 Pitch (4 holes per inch), 46 holes total
|
|
Hole Shape / Size
|
Round (4mm)
|
|
Punch Handle
|
Full handlebar (supports left-handed, right-handed, or two-handed operation)
|
|
Machine Dimensions
|
14.7″ x 10.2″ x 4.7″ (375 x 260 x 120 mm)
|
|
Package / Shipping Dimensions
|
15″ x 11″ x 5″
|
|
Device Weight
|
18 lbs (8.16 kg)
|
|
Warranty
|
1-Year Manufacturer Defective Parts Warranty
|
|
Value Kit Inclusions
|
Free coil crimper tool (pliers)
|
