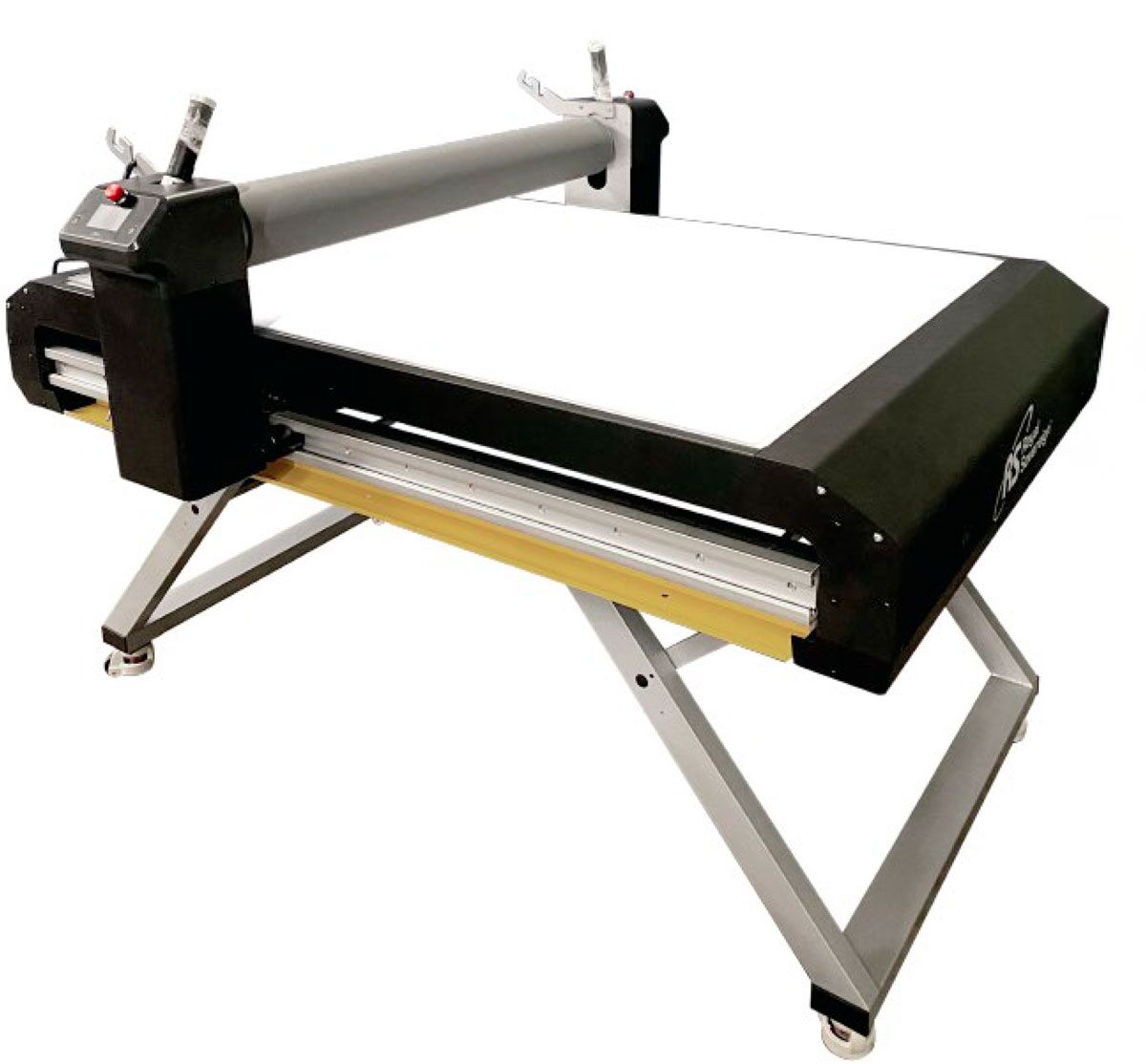

Royal Sovereign RSFA-1000M – Flatbed Applicator
The RSFA-1000M is a professional-grade vinyl mounting table designed for fast, precise application of laminates, prints, and transfer tape. Ideal for sign shops and large-format print environments, it delivers high performance for mounting, pre-masking, and laminating—all in one versatile machine.
Built for reliability and ease of use, this cold applicator table helps boost productivity while reducing labour needs.
📌 Key Features:
- ✅ 3’ x 4’ heat-assisted flatbed with electronic nip pressure control for accurate and even pressure
- ✅ Ergonomic electronic handles allow independent roller adjustment from both sides
- ✅ Digital heat assist with 3 modes: lamination, mounting, and pre-masking
- ✅ Under-table gliding bridge offers full roller access for easy material handling
- ✅ Designed for one-person operation to mount full-sheet graphics with ease
- ✅ Foldable legs for easy transport—fits through standard doors and tight spaces
- ✅ Ideal for applying vinyl, print graphics, adhesive films, and transfer tape
Whether you’re applying vinyl, mounting graphics, or pre-masking with tape, the Royal Sovereign RSFA-1000M Flatbed Applicator simplifies the process while delivering clean, professional results every time.
⚙️ Specifications:
| Model Number | FA-1000M |
| Bed Length | 1.106 mm / 3.33′ |
| Bed Width | 1.651 mm / 5.41′ |
| Bed Height | 914 mm / 36″ |
| Length of Working Area | 1.230 mm / 4′ |
| Width of Working Area / Roller Width | 930 mm / 3′ |
| Voltage | 115v , 50/60 Hz |
| Power | 1500 W |
| Type | Flatbed |
| Max. Thickness of Substrate | 76.2 mm / 3″ |
| Max. Temperature | Variable heat assist to 140°F (60°C) |
| Display Temperature | Cold/Low/High (3steps) |
| Bed Surface | Ø150 |
| Unit Dimensions (WxDxH) | Acrylic Table Top w/ Self Healing Cutting Mat |
| Roller Nip Pressure Control | Electronic |
| Lifting Speed | 24 mm / s |
| Roller Diameter | Crowning,130 mm (5.12”) |
| LED Light | LED Illumination From Under the Table |
| Wheels | Locking Casters |
