The Roland Versa Studio BY-20 printer offers extraordinary product customization.

It’s a highly versatile desktop device ideal for a range of direct-to-film apparel applications, such as creating custom T-shirts, sportswear, tote bags, and more with your Roland Versa Studio BY-20.


Heavy signal show to the customer to call to the sales staff about shipping costs Please do not order online with a Credit Card. Credit will be refunded less the Credit Card Fees.

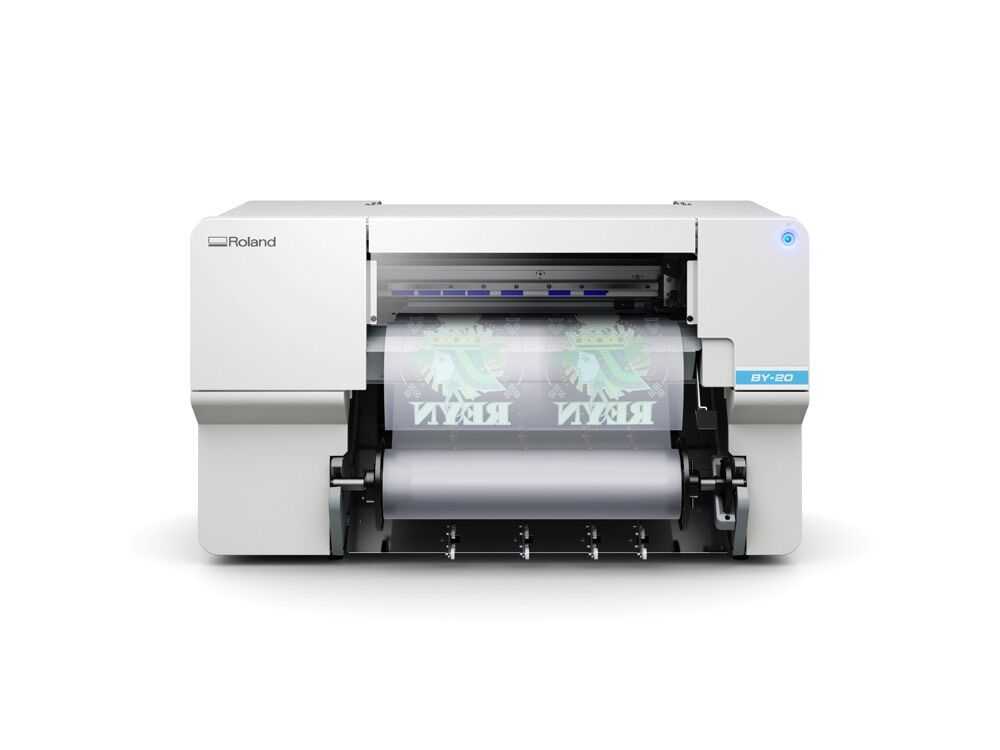

Roland Versa Studio BY-20 – Desktop Direct-to-Film Printer

The Roland Versa Studio BY-20 printer offers extraordinary product customization.

The Roland Versa Studio BY-20 is a direct-to-film apparel applications, such as creating custom T-shirts, sportswear, tote bags, and more.

Use the Roland Versa Studio BY-20 integrated contour-cutting capabilities to produce jersey numbers and other heat transfer graphics, provides professional-grade print performance at an entry-level price, making it an ideal choice for start-ups and small, growing businesses with budget considerations.


Roland Versa Studio BY-20 Features:

  • The BY-20, priced to suit the budgets of those just getting started, is a professional-level printer. It includes design and output software, allowing you to begin printing right out of the box.
  • Compact enough to sit on your desktop, the BY-20 is ideal for your home office or shop. Setup, ink loading, and maintenance can be executed from the front of the printer, further minimizing space requirements.
  • Reliability comes standard with the BY-20, so you can count on smooth, consistent performance. Easy-to-follow instructions and intuitive engineering make periodic maintenance and consumable replacement a breeze.


Printing Method Piezo ink-jet method
Media Width 5.91 to 20.2 in. (150 to 515 mm)
Thickness Maximum 39.3 mil (1.0 mm) with liner, for printing
Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
Roll outer diameter Maximum 5.9 in. (150 mm)
Roll weight Maximum 13.2 lb. (6 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1) Maximum 18.89 in. (480 mm)
Ink Type 220-ml cartridge
Colors Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch) Maximum 1,440 dpi
Cutting speed 0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force (*2) 30 to 500 gf
Blade Type Roland CAMM-1 series blade
Offset 0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Media heating system (*3) Print heater set temperature: 86 to 95 °F (30 to 35 °C)
Dryer set temperature: 86 to 100.4 °F (30 to 38 °C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Rated input 100-240 Va.c. 50/60 Hz 2.1 A
Power consumption During operation Approx. 185 W
Sleep mode Approx. 27W
Acoustic noise level During operation 62 dB (A) or less
During standby 60 dB (A) or less
Dimensions (Width x Depth x Height) 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight 137 lb. (62 kg)
Environment During operation (*4) Temperature: 68 to 89.6 °F (20 to 32 °C)
Humidity: 40 to 80 % RH (no condensation)
Not operating Temperature: 41 to 104 °F (5 to 40 °C)
Humidity: 20 to 80 % RH (no condensation)
Included items Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User’s Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.
*1    The length of printing or cutting is subject to the limitations of the program.
*2   500 gf is the maximum instantaneous blade force.
    Adjust the blade force based on details such as the media thickness.
*3  Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
*4  Operating environment (Use in an operating environment within this range.)
