Description

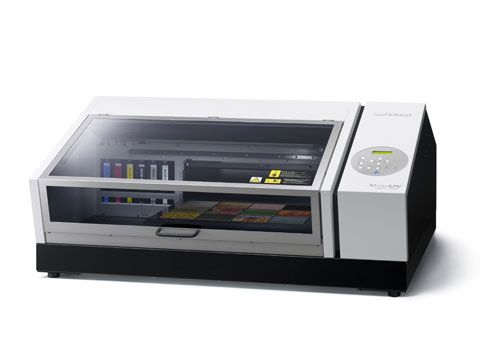

With optimized ease and efficiency, you can print directly onto accessories, giftware, ceramics, and countless other popular products. Create unique, desirable and highly-profitable custom items with the VersaUV LEF2-200 flatbed UV printer that offers brilliant colour results, realistic textures and stylish embossed effects.
Advanced Ink Printing
Print graphics with consistent colour and incredible detail on a virtually unlimited range of promotional products.
- Produce stunning graphics with CMYK, White and Gloss ECO-UV® (EUV4) inks
- White ink acts as a brilliant spot colour, or to ensure that colours pop on dark or clear substrates
- Optional Primer increases efficiency by prepping the surface of materials like acrylic and plastic for full-colour customization*
- An Automated Ink Circulation System prevents ink pigments settling in the ink lines for smooth consistency and density
- Mist Filters catch the residual ink that mists off the edge of your media to prevent overspray and to keep ink from settling on internal components
Specifications
| Model | LEF2-200 | |
|---|---|---|
| Printing method | Piezo ink-jet method | |
| Attachable objects to be printed on | Width | Max. 21.2 in. (538 mm) |
| Length | Max. 14.2 in. (360 mm) | |
| Thickness | Max. 3.94 in. (100 mm) | |
| Weight | Max. 11 lb. (5kg) | |
| Maximum printing width / printing length | Max. 20 (width) × 13 (length) in. (508 (width) × 330 (length) mm) | |
| Ink | Type | ECO-UV (EUV, EUV4) 220 ml cartridge |
| Colors | Five colors (cyan, magenta, yellow, black, and white) Five colors (cyan, magenta, yellow, black, and white) and primer Six colors (cyan, magenta, yellow, black, white, and gloss) |
|
| Ink-curing unit | Built-in UV-LED lamp | |
| Print resolution (dots per inch) | Max. 1440 dpi | |
| Distance accuracy* | Error of less than ±0.3% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater. | |
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Power requirements | AC 100 to 240 V ± 10%, 1.8 A, 50/60 Hz | |
| Power consumption | During operation | Approx. 149 W |
| Sleep mode | Approx. 13 W | |
| Acoustic noise level | During operation | 60 dB (A) or less |
| During standby | 49 dB (A) or less | |
| Outer dimensions | 47.3 [W] × 37.9 [D] × 21.6 [H] in. (1,202 (W) × 962 (D) × 549 (H) mm) | |
| Weight | 242.5 lb. (110 kg) | |
| Environment | During operation | Temperature: 68 to 89.6°F (20 to 32°C) (71.6°F (22°C) or higher recommended), Humidity: 35 to 80% RH (no condensation) |
| Not operating | Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation) | |
| Included items | Power cord, software RIP, cleaning liquid, drain bottle, manuals, etc. | |
