Triumph 6660 Paper Cutter 25 1/2″ Programmable Machine
Please do not order online with a Credit Card. Credit will be refunded less the Credit Card Fees.

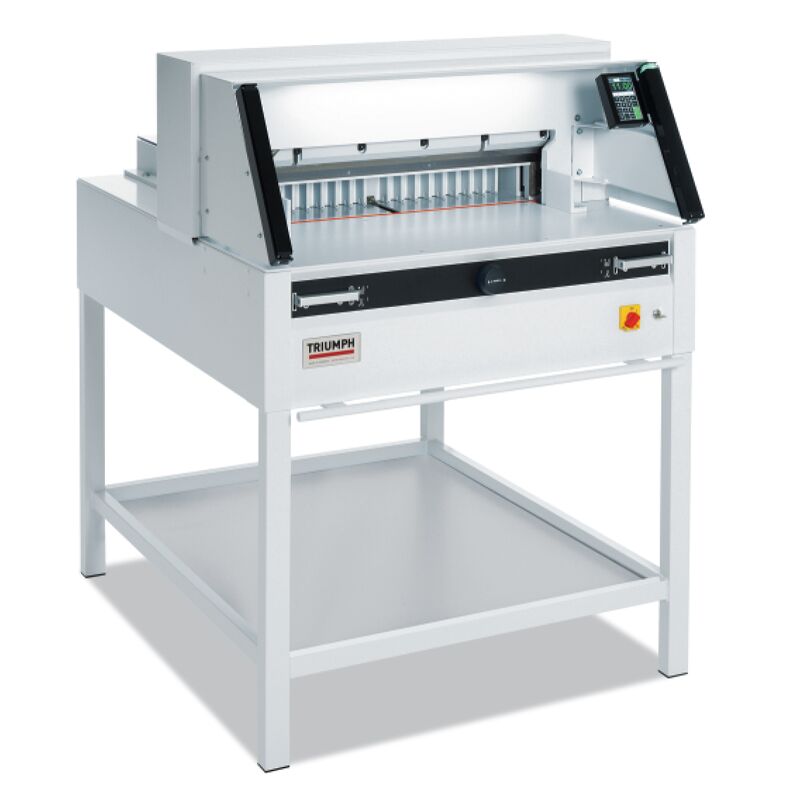

Triumph 6660 Paper Cutter 25 1/2″ Programmable with IR Safety Front Light Beams
The Triumph 6660 Paper Cutter delivers precise and efficient cutting for professional print finishing environments. It handles large paper stacks with smooth and controlled operation. The programmable control system stores repeat cut settings for faster job turnaround. This cutter supports consistent accuracy across short and long runs. The solid steel construction provides stability during heavy cutting tasks. An intuitive control panel simplifies setup and daily operation.
The wide cutting width suits posters, booklets, and commercial print jobs. This machine helps streamline finishing workflows and reduce manual adjustments. It fits well in print shops, offices, and in-plant facilities. The Triumph 6660 supports dependable performance under regular production demands. It delivers clean edges for a professional final result.
Product Features
- Patented Easy Cut electronic blade activation bars (2-handed operation)
- IR light beam safety curtain on the front table
- Transparent electronically controlled front safety guard
- Transparent safety cover on the rear table
- Main switch and safety lock with key
- Patented IDEAL safety drive
- Automatic blade and clamp return from every position
- Disc brake for instant blade stop
- Blade changing device
- Outside blade depth adjustment
- Blade and cutting stick can be changed without removing covers
- Ergonomic, 37″ working height
- Electric blade and clamp drive
- Electric back gauge drive with touchpad for easy programming (Up to 99 programs with 99 steps each)
- Pre-programmed for standard paper sizes, memory key for repeat cuts
- Digital measurement display (cm and inches)
- Self diagnostic system with error indication on display
- Electronic hand wheel with variable speed control for manual back gauge setting
- Adjustable, spindle guided back gauge with narrow separations and plastic gliders
- Bright LED optical cutting line
- Dual side guides on front and rear tables
- All metal construction
- German steel blade
- Optional side tables for increased work surface
Specifications
| Cutting width | 25 1/2″ (64.77 cm) |
|---|---|
| Cutting height | 3″ (7.62 cm) |
| Narrow cut | 1″ (2.54 cm) |
| Length behind blade | 24″ (60.96 cm) |
| Electrical requirements | 115 V, 60 Hz (20 amp dedicated line required) |
| Motor output | 2 horsepower |
| Dimensions | 48″ x 39″ x 51″ (61 1/2″ W with side tables) 121.92 x 99.06″ x 51″ (61 1/2″ W with side tables) |
| Shipping weight | 775 (796 with side tables) |
Introducing VRCUT
VRCut is a groundbreaking software solution designed to automate the cutting workflow by promoting an efficient and error-free cutting process from start to finish.
VRCut intelligently bridges the gap between pre-press and the finishing process, allowing operators of any experience level the ability to cut with confidence on select Triumph cutters.
