Description

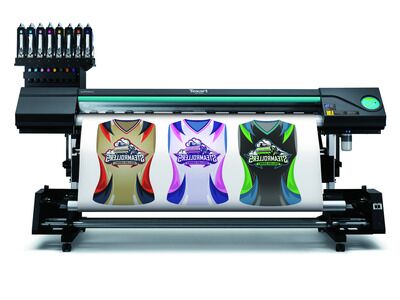

COMING SOON! – If you’re looking to start an “all-in-one” custom sign, graphics, décor and apparel business, the multi-function Texart RT-640M is the dye-sublimation printer for you. Intelligent, affordable and versatile, it offers outstanding graphics results and gives you the freedom to print onto transfer paper as well as printing direct-to-fabric.
The Texart RT-640M simplifies dye-sublimation production for soft-signage, apparel and textiles with a direct-to-fabric print option. It also maintains the media versatility of printing to transfer paper for rigid sign, merchandise, and hard surface customization. The following items showcase some of the hundreds of application opportunities that the RT-640M offers.
Dye-Sublimation Innovation
The unique printing capabilities of the RT-640M allow you to print directly onto coated polyester fabrics, as well as dye-sublimation transfer paper— using the same specially-formulated Texart SBL3 sublimation inks. There’s simply no other device in its class that can do this all-in-one.
Specifications
| Model | RT-640M | |
| Printing Technology | Piezoelectric inkjet | |
| Media | ||
| Width | 259 to 1625 mm (10.2 to 64 in.) | |
| Thickness | Max. 1 mm (39 mil) | |
| Roll outer diameter | Max. 210 mm (8.3 in.) | |
| Roll weight | Max. 40 kg (88 lb) | |
| Core diameter*1 | 76.2 mm (3 in.) or 50.8 mm (2 in.) | |
| Printing width*2 | Max. 1615 mm (63.6 in.) | |
| Ink | Type | Texart ink, 1000 cc pouch |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) 8 colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, Violet) 8 colours Fluorescent (Cyan, Magenta, Yellow, Black, Orange, Violet, Fluorescent Yellow, Fluorescent Pink) | |
| Print resolution (dots per inch) | Max. 1440 dpi | |
| Distance accuracy*3 | Error of less than ±0.3% of distance travelled, or ±0.3 mm, whichever is greater | |
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Power requirements | AC 100 to 240 V ±10%, 1.5 A, 50/60 Hz | |
| Power consumption | During operation | Approx. 140 W |
| Sleep mode | Approx. 31 W | |
| Acoustic noise level | During operation | 62 dB (A) or less |
| During standby | 49 dB (A) or less | |
| Dimensions (with stand) | 2650 (W) x 795 (D) x 1600 (H) mm (104.4 x 31.3 x 63 in.) | |
| Weight (with stand) | 160 kg (353 lb) | |
| Environment | Power on | Temperature: 18 to 25°C (64.4 to 77°F), humidity: 35 to 65% RH (no condensation) |
| Power off | Temperature: 15 to 30°C (59 to 86°F), humidity: 20 to 80% RH (no condensation) | |
| Included items | RIP software, take-up system, exclusive stands, power cable, media clamps, media holder, User’s Manual, etc. | |
| Software | ErgoSoft Roland Edition 2 | |
