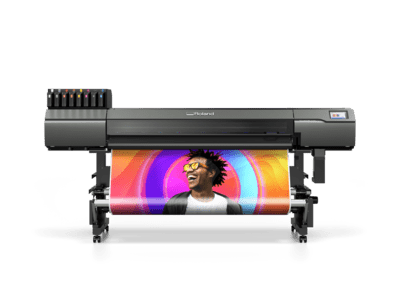

Roland TrueVis LG Series – LG-640 / LG-540 / LG-300
Please do not order online with Credit Card. Credit will be refunded less the Credit Card Fees.
Roland TrueVis LG Series:
- Built on our TrueVIS platform with the print capabilities of our existing UV printers!
- Excellent image quality and productivity for the signage market.
- Low running costs with EUV5 Ink 750 ml pouches.
What’s new?•Enhanced operability by adopting a new platform that is the same as VG3. •The newly designed 7-inch LCD Touchscreen Control Panel allows users to intuitively access media setup and other menu options with ease. Nozzle check, blade adjustment and automated calibration features can also be accessed using the touch screen. •New staggered-position, 1200 dpi Printheads •New UV-LED Lamps •New Take-up unit |
|
Roland TrueVis LG Series FeaturesThe new TrueVIS LG-300, LG-540, and LG-640 printer/cutters are built off the multiple industry award-winning TrueVIS platform to bring users the most technologically advanced Roland DG print-and-cut UV inkjets ever. Known for producing high-quality, color-rich graphics, the LG Series UV printers incorporate enhanced features that improve overall ease of use and performance. Physical design changes allow for easier media loading and improved media tracking, while software enhancements improve on the already stunning image quality These are quite simply the BEST UV printers/cutters Roland DG has ever made. |
|
Key Selling PointsIn anticipation of market growth and competition, the new TrueVIS LG Series printer/cutters were designed to meet the demands made by original • Two staggered printheads (1.4” wide) • Printheads are equipped with a heater that warms up the ink, minimizing the effect of outside temperature and ensuring stable color. This reduces the idling time required until the printhead heats up, especially during the winter. • Optimized Waveform for high-speed printing. • New UV lamps for more efficient curing.
|
Amazing Print Speeds
• The LG can print up to 172 ft²/hr (15.98 m²/hr) in Standard Mode in CMYK. • The LG can print up to 229 ft²/hr (21.27 m²/hr) in High-Speed Mode in CMYK. • The LG can print up to 343 ft²/hr (31.87 m²/hr) in Draft Mode in CMYK. |
7-inch LCD Control PanelOne of the most amazing updated features is a first for Roland DG and the TrueVIS Series printer/cutters. A newly designed 7-inch LCD Touchscreen Control Panel allows users to intuitively access media setup and other menu options with ease. Nozzle check, blade adjustment and automated calibration features can also be accessed using the touch screen. Use custom settings for each media with simple access at startup, including all calibration settings and media remaining amount.
|
|
• During printing operations, the control panel will display the current status of the printer/cutter.
• A preview pane also displays the name as well as a thumbnail image of the current job being printed. • The status bar will also indicate the print time remaining for the displayed job. |
|
• This is the first touchscreen control panel for Roland DG’s TrueVIS Series, the menu operation is so intuitive that using these printers/cutters is like second nature from the very beginning and the learning curve is short.• From wakeup to print-ready in as little as five easy steps, the control panel feature highlights Roland DG’s ongoing commitment to making products that exceed user expectations and are increasingly easier to operate. | |
Automated Media Calibrations• One of the innovative features added to the newly designed control panel is the ability to execute the media gap adjustment (also known as bi-directional and unidirectional adjustments.) • In addition, the feed calibration adjustment can also be printed, scanned, and corrected for accuracy in the same operation. This is a great time-saver for making finely-tuned adjustments when changing out media from one application to the next since the user can simply walk away while the printer does the work. |
