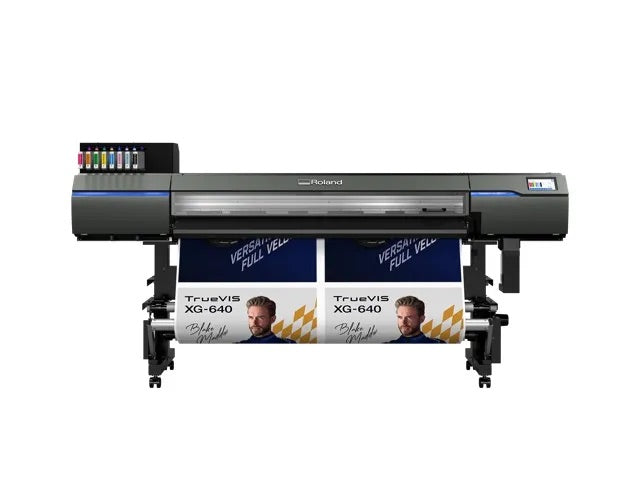

The Roland TrueVIS XG-640 Buyer’s Guide

Commercial print shop owners, signmakers, and graphic professionals face an ever-increasing demand for swift turnaround times, razor-sharp visual detail, and flawless production reliability. Investing in high-speed digital equipment that combines premium print quality with integrated finishing is one of the most effective strategies to scale operational throughput and maximize profit margins. The Roland TrueVIS XG-640 emerges as a flagship 64-inch roll-to-roll solution built specifically to help growing print businesses tackle demanding job volumes with complete confidence.

Architectural Engineering & High-Speed Performance

Engineering excellence is the cornerstone of industrial throughput, and the TrueVIS XG-640 is built from the ground up to keep production moving at full throttle. As Roland DG's most productive integrated printer/cutter to date, this 64-inch workstation achieves output speeds nearly double those of previous generations.

Dual Staggered Printhead Configuration

At the core of this machine's performance is an advanced dual staggered printhead array. By offsetting two larger, next-generation printheads, the system ejects finer ink droplets at higher densities across every pass. This mechanical layout enables high-resolution image rendering up to 1,800 dpi while requiring fewer passes across the media bed.

In four-colour high-speed modes, the machine achieves a top printing speed of up to 819 square feet per hour. For shops utilizing the eight-colour configuration, it delivers rich, expanded-gamut prints at production speeds of up to 327.2 square feet per hour on vinyl in standard mode. This exceptional throughput allows print service providers engaged in large format printing to execute high-volume runs overnight and deliver customer-ready jobs the next morning.

Integrated CAMM-1 Print & Cut Mechanics

Combining printing and contour cutting into a single automated footprint eliminates the need for separate finishing equipment. The machine incorporates Roland's industry-leading CAMM-1 drag-blade technology, featuring automated pinch roller controls that adjust pressure dynamically between print and cut cycles. Operating with a blade force ranging from 30 to 500 grams-force and cutting speeds up to 11.8 inches per second (300 mm/s), the device handles thin cast films, heavy banner stocks, and thick laminated media with exacting precision.

TR3 Eco-Solvent Ink Chemistry & Colour Configurations

A high-speed production engine requires advanced ink formulation to deliver lasting outdoor durability and vibrant colour expression. Operating as an advanced eco-solvent printer, the device utilizes Roland's TR3 ink series, which is GBL-free and GREENGUARD Gold certified for safer indoor air quality.

Multi-Channel Colour Options

The TR3 ink system offers versatile ink loading options, allowing shop owners to tailor their machine configuration to match their exact product offerings:

• 8-Colour Gamut Expansion (CMYK + Lk + Or + Gr + Re): Introduces dedicated Red, Orange, and Green spot inks alongside Light Black. Red ink fills the warm spectral gap that Orange alone cannot reach, enabling precise rendering of corporate brand logos, sports team liveries, and natural skin tones. Alternative eight-colour setups include Light Cyan and Light Magenta for ultra-smooth tonal gradations.
• 7-Colour High-Opacity White Setup (CMYK + Or + Re/Gr + White x2): Incorporates dual TR3 White ink cartridges. This next-generation White ink yields 1.3 times greater opacity and three times higher printing productivity than previous ink generations, providing rich base coats for transparent and dark media.
• 4-Colour High-Speed Setup (Dual CMYK): Maximizes raw square-footage output for shops focused purely on rapid turnaround times.

Comprehensive Technical Specifications

Shop Now

The following table details the hardware, environmental, electrical, and operational parameters of the XG-640:

Smart Automation & Daily Workflow Tools

Operating an efficient print shop requires hardware features that reduce manual labour, eliminate setup errors, and streamline post-processing work.

Automated Media Gap Adjustment

Manual media height profiling can be time-consuming and risks accidental printhead strikes. The XG-640 features an optical registration sensor array that automatically detects substrate thickness, adjusts the printhead gap, and executes precise alignment calibrations without operator intervention.

Interactive 7-Inch Colour Touchscreen

A responsive 7-inch colour LCD control panel is integrated directly into the front chassis. Operators can view remaining ink levels, track job completion times, manage heater temperatures, and trigger automated cleaning routines at the touch of a button. Once print conditions are configured in the RIP, repeat jobs can be selected and launched directly from the touchscreen without returning to the computer workstation.

Perforated Sheet Cut Function

For high-volume production, the automated perforated sheet cut feature adds precise perforations between completed print jobs. This allows operators to easily tear off finished rolls or individual job sheets without using manual utility knives, saving workspace and preventing accidental graphics damage.

Automatic Media Take-Up Unit

Standard equipment includes an integrated heavy-duty take-up system that handles media rolls up to 99 pounds (45 kg). Synchronized tension control maintains straight winding across long, unattended overnight production runs.

Included Software Suite

• VersaWorks 7 RIP: The latest edition of Roland's RIP software features native compatibility with both Windows and macOS platforms. Built on a dual Harlequin processing engine, it includes native PDF rendering, five simultaneous job queues with Hot Folders, automatic White layer generation, variable data printing, and Pantone spot colour matching libraries.
• Roland DG Connect App: A cloud-based device management application that provides real-time monitoring of machine activity, ink consumption tracking, preventative maintenance alerts, and job cost calculations from any mobile or desktop device.

High-Profit Applications & Finished Product Portfolio

The versatility of the TrueVIS XG-640 enables commercial decorators to expand into multiple lucrative market sectors, producing high-impact products for corporate client campaigns:

• Fleet & Vehicle Graphics: The expanded TR3 Red and Orange ink gamut ensures accurate brand reproduction for corporate fleets. Flexible eco-solvent ink films conform smoothly over vehicle channels, body curves, and rivets, producing durable car wraps that withstand outdoor weathering.
• Commercial Signage & Outdoor Advertising: High-speed throughput makes printing expansive outdoor banners and large-scale billboards effortless, allowing shops to meet tight installation deadlines for corporate print marketing campaigns.
• Retail & Storefront Displays: Utilizing dual White ink cartridges enables two-layer or three-layer printing (Colour-White-Colour) on clear acrylics and frosted glass, producing vibrant window graphics for retail promotional campaigns.
• Custom Decals & Product Labels: Integrated contour cutting allows shops to produce short-run product labels, custom die-cut stickers, and weather-resistant car decals on gang sheets without investing in secondary cutting dies.
• Interior Décor & Murals: Odourless, GREENGUARD Gold-certified inks make the device ideal for printing custom indoor wallpaper, wall coverings, and gallery canvas graphics for residential, commercial, or healthcare environments.

Profitability Analysis & Investment Return

Evaluating capital equipment requires analyzing equipment financing against job yield and retail sell prices. With an estimated monthly lease payment of approximately $431 USD (based on a 60-month lease on promo pricing), the device offers a rapid breakeven timeline for active print shops.

The table below illustrates sample production costs, retail market values, and estimated profit returns across common print jobs:

(Note: Estimated production costs and retail values are based on industry averages and will vary depending on specific media substrates, local market rates, and ink coverage settings. Most commercial shops recoup their complete equipment investment within 12 months when running 10 or more jobs per week).

Summary Verdict

In summary, the Roland TrueVIS XG-640 delivers an exceptional combination of speed, colour fidelity, and operational efficiency for forward-thinking print providers. By eliminating manual finishing bottlenecks, reducing media waste, and providing a reliable platform backed by a comprehensive two-year warranty, this 64-inch workstation gives businesses the exact tools needed to expand their service offerings and achieve long-term commercial success.
