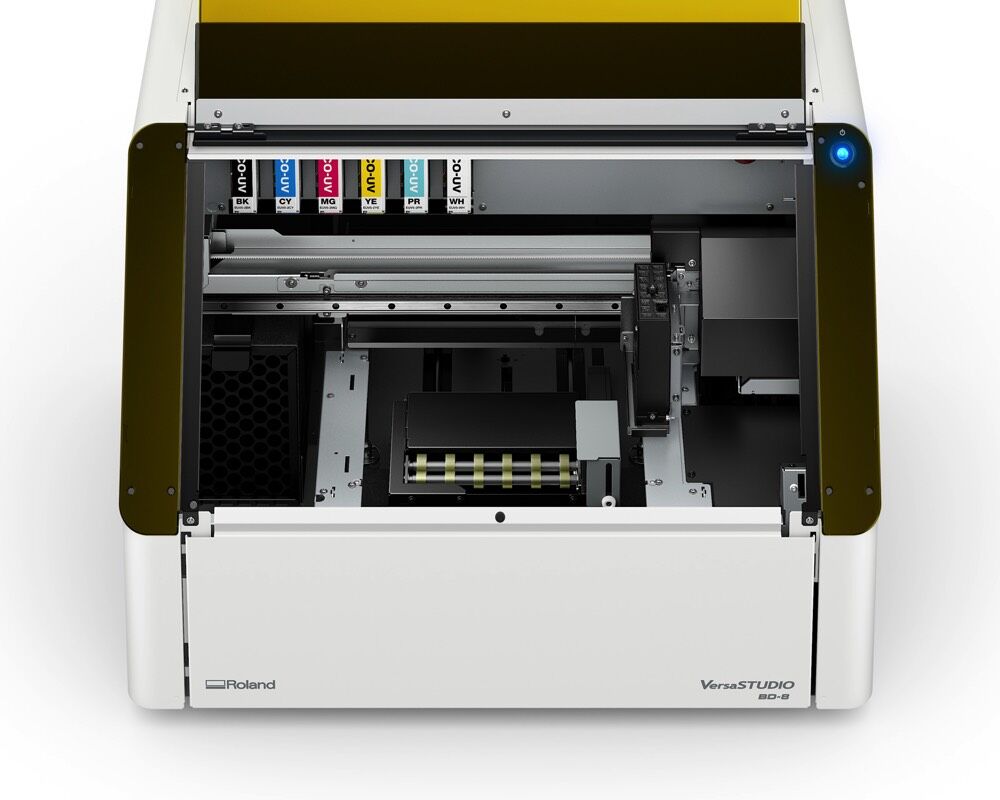

BD-8 Product Photo
BD-8 Product Photo

Roland VersaStudio BD-8

Roland VersaStudio BD-8


The Roland VersaStudio BD-8 printer for extraordinary product customization

Designs can be printed in a wide variety of materials, including plastics, paper, leather and wood — even glass and metal with the onboard primer ink with the Roland VersaStudio BD-8


Heavy signal show to the customer to call to the sales staff about shipping costs Please do not order online with a Credit Card. Credit will be refunded less the Credit Card Fees.

Roland Versa Studio BD-8 – Desktop UV Flatbed Printer

The Roland Versa Studio BD-8 printer offers extraordinary product customization.

It provides professional-grade print performance at an entry-level price, making it an ideal choice for start-ups and small, growing businesses with budget considerations.

What sets the BD-8 apart is its built-in fume extractor, eliminating the necessity of investing in a separate and costly air filtration unit.This integrated feature enhances convenience and cost-effectiveness for users.

This ensures a seamless experience from setup to production, making the BD-8 a valuable asset for businesses of varying scales.


Roland Versa Studio BD-8 Features:

  • Print vibrant, detailed graphics and text directly on a vast array of 3D objects up to 4″ thick.
  • Compact design fits easily on your desktop– ideal for small home offices, retail shops, and maker spaces.
  • Simple operation and included output and design software makes product customization easy– even for those with no prior print experience.
  • Advanced UV printing technology, including a high-definition printhead, for stunning graphics and detailed text.
  • UV technology prints beautifully and graphics adhere well to a wide variety of substrates.
  • ECO-UV 5 inks produce vibrant graphics and unique effects.
  • Priced to suit the budgets of start-ups, home businesses, and smaller retail
  • Built-in fume extractor ensures optimum safety by filtering out fumes.
  • Legendary Roland DG reliability, low maintenance, and world-class customer


Printing Method Piezo ink-jet method
Attachable objects to be printed on Width Max. 9.4 in. ( 240 mm)
Length Max. 7 in. (178 mm)
Thickness Max. 4 in. (102 mm)
Weight Max. 6.6 lb. (3 kg)
Maximum printing width/printing length Max. 8.2 in. × 5.8 in. (210 mm × 148 mm)
Ink Type ECO-UV (EUV5) 220 ml cartridge
Colors Five colors (cyan, magenta, yellow, black, and white) and primer
Ink-curing unit Built-in UV-LED lamp
Printing resolution (dots per inch) Max. 1,440 dpi
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Rated input 100-240 Va.c. 50 / 60 Hz 1.1A
Power consumption During operation Approx. 90 W
Sleep mode Approx. 30 W
Acoustic noise level During operation 59 dB (A) or less
During standby 52 dB (A) or less
Dimensions (Width x Depth x Height) 30.3 in. × 23.1 in. × 22.9 in.
(768 mm × 586 mm × 580 mm)
Weight 134.5 lb.
(61 kg)
Environment During operation *1 Temperature: 68°F to 89.6 °F (20°C to 32°C) (71.6 °F [22 °C] or higher recommended)
Humidity: 35%RH to 80 %RH (no condensation)
Not operation Temperature: 41°F to 104 °F (5°C to 40 °C)
Humidity: 20%RH to 80 %RH (no condensation)
Included Items Power cord, Cleaning liquid, User’s Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

Download (PDF, 261KB)
