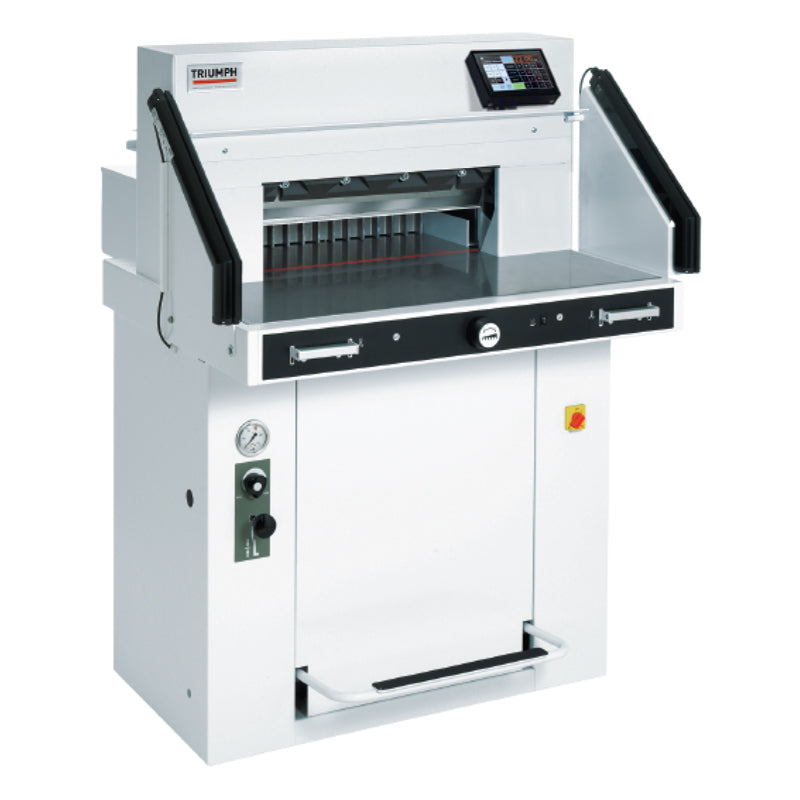

Triumph 5560 Cutter 21 5/8" Hydraulic Programmable

Triumph 5560 Cutter 21 5/8" Hydraulic Programmable with IR Safety Front Light Beams

• Patented Easy Cut electronic blade activation bars (2 handed operation)
• IR light beam safety curtain on front table
• Transparent electronically controlled front safety guard
• Transparent safety cover on rear table
• Main switch and safety lock with key
• Automatic blade and clamp return from every position
• Disc brake for instant blade stop
• Blade changing device
• Outside blade depth adjustment
• Blade and cutting stick can be changed without removing covers
• Hydraulic blade and clamp drive
• Electric back gauge drive with touchpad for easy programming (Up to 99 programs with 99 steps each)
• Pre-programmed for standard paper sizes, memory key for repeat cuts
• Digital measurement display (cm and inches)
• Self diagnostic system with error indication on display
• Electronic hand wheel with variable speed control for manual back gauge setting
• Clamp pressure is fully adjustable between 1,900 and 3,800 psi
• Bright LED optical cutting line
• Dual side guides on front and rear tables
• All metal construction
• German HSS blade
• Optional side tables for increased work surface



• Dimensions (D x W x H), inches: 55 x 42 x 54 (64 W with side tables)
• 5560 shipping weight, pounds: 970 (1,008 with side tables)
