Triumph, 7260, cutter, hydraulicTriumph 1 / 2

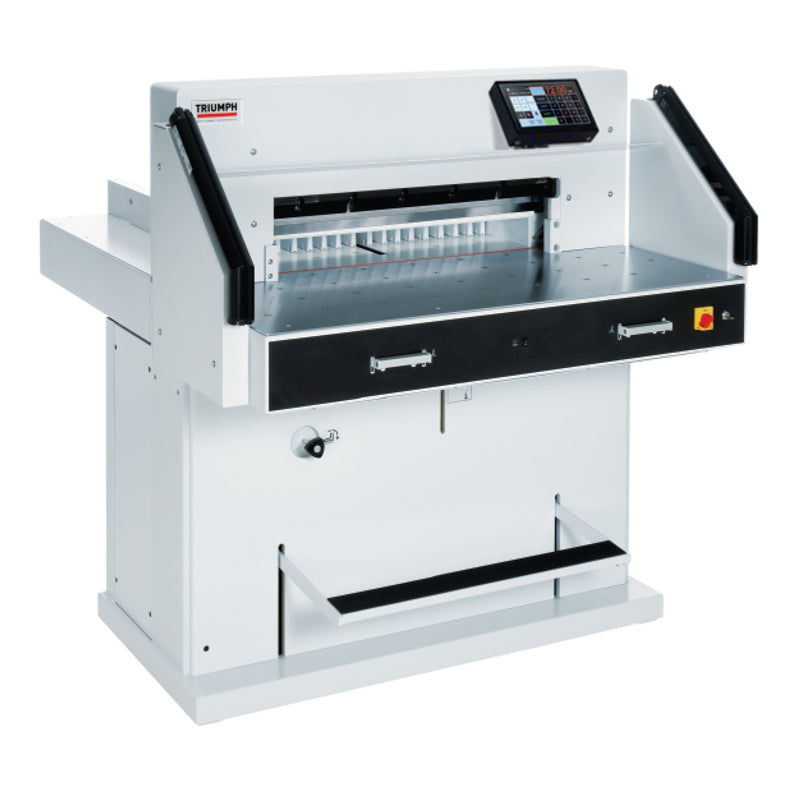

Triumph 7260 Cutter 28" Hydraulic Programmable

SKU MBMCU0494V
$37,127.00 CADBuying in volume? Ask for case pricing
Ships from TorontoTo Canada and the US
Price matchFound it lower? We match
Expert help+1.800.268.6577
Description

*** SPECIAL ORDER PRODUCT.  PROCESSING TIME WILL BE 5-7 BUSINESS DAYS BASED ON PRODUCT AVAILABILITY. ***

Triumph 7260 Cutter 28" Hydraulic Programmable with IR Safety Front Light Beams

  • Patented Easy Cut electronic blade activation bars (2 handed operation)
  • IR light beam safety curtain on front table
  • Main switch and safety lock with key
  • Automatic blade and clamp return from every position
  • Disc brake for instant blade stop
  • Blade changing device
  • Outside blade depth adjustment
  • Blade and cutting stick can be changed without removing covers
  • Hydraulic blade and clamp drive
  • Electric back gauge drive with touchpad for easy programming (Up to 99 programs with 99 steps each)
  • Pre-programmed for standard paper sizes, memory key for repeat cuts
  • Digital measurement display (cm and inches)
  • Self diagnostic system with error indication on display
  • Electronic hand wheel with variable speed control for manual back gauge setting
  • Clamp pressure is fully adjustable between 550 and 4,400 psi
  • Bright LED optical cutting line
  • Dual side guides on front and rear tables
  • All metal construction
  • German HSS blade
  • Optional side tables for increased work surface

Cutting width, inches 28
Cutting height, inches 3
Narrow cut, inches 3/4 (3 1/2 with false clamp)
Length behind blade, inches 28


  • Dimensions (D x W x H), inches: 60 1/2 x 51 3/8 x 52 1/2 (63 D, 82 1/2 W with side tables)
  • Shipping weight, pounds: 1,534 (1,622 with side tables)



Specifications
Brand
Triumph
SKU
MBMCU0494V
Shipping weight
1600.0 kg
Shipping and returns

Ships from our Toronto warehouse to Canada and the US. Returns and exchanges follow our return policy.
